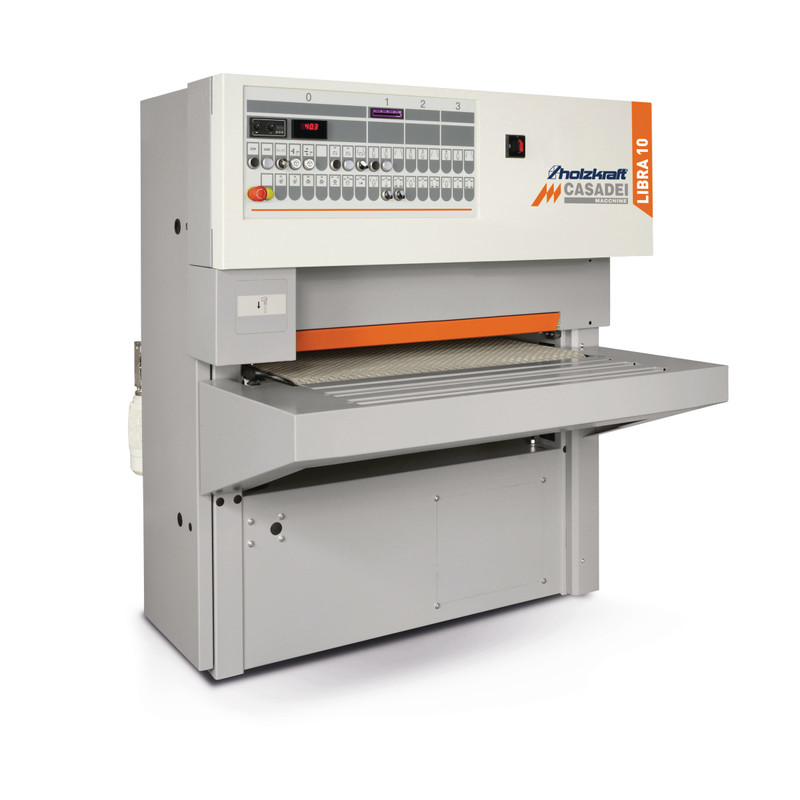

wide belt sanding machine

- Also for smaller craft shops for occasional use
- Combination sanding unit with sanding shoe for fine sanding
- Standard with diagonally grooved steel roller Ø 120 mm for calibration
- Fine adjustment of the working height
- Clear control panel on the front
- Robust tube-stiffened monobloc steel machine body, robot welded, high-mounted working units for maximum rigidity
- Motorized height adjustment of the work table with digital display
- Electronically controlled sanding belt oscillation
- Carpet feed via gear motor with two speeds
- Natural rubber feed carpet with negative profile
- Flexible steel pressure rail in front of the first unit
- Rubber rollers, in front of or behind each working unit
- Pneumatic belt tension per unit with decimal correction possibility of the grain / belt thickness
- Universally applicable for solid wood and veneer thanks to combi unit
- Entry level model for smaller companies
- Working width 950 mm


Room amenities
- Combination unit for calibrating and sanding
- Slant-grooved steel roller Ø 120 mm with height fine adjustment
- Hard sanding pad with graphite pad
- Universal version for calibration and sanding of solid wood, chipboard and veneer


equipment
- Option Automatic table positioning
- Adjustment of worktable height automatically via microswitch without correction of material removal
- Optionally available for Libra 10

DELIVERY CONTENTS
- Worktable height adjustment with electronic display of the working height
- Oscillation of the sanding belts with electronic system
- Rubber-coated grooved pressure roller at inlet 1 ° position with backflow preventer
- Grooved calibration steel roller
- Switching the sanding pad on and off from the control panel
- Switching the roller on and off from the control panel
- Electronic control Fox 500 KTR
- Table extension with 2 castors in inlet and outlet
