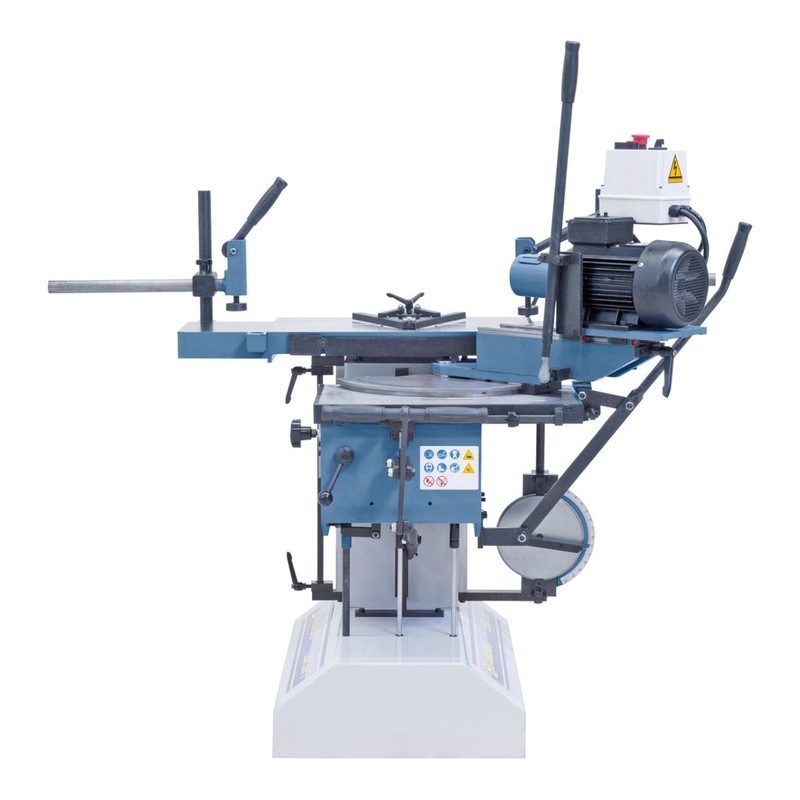

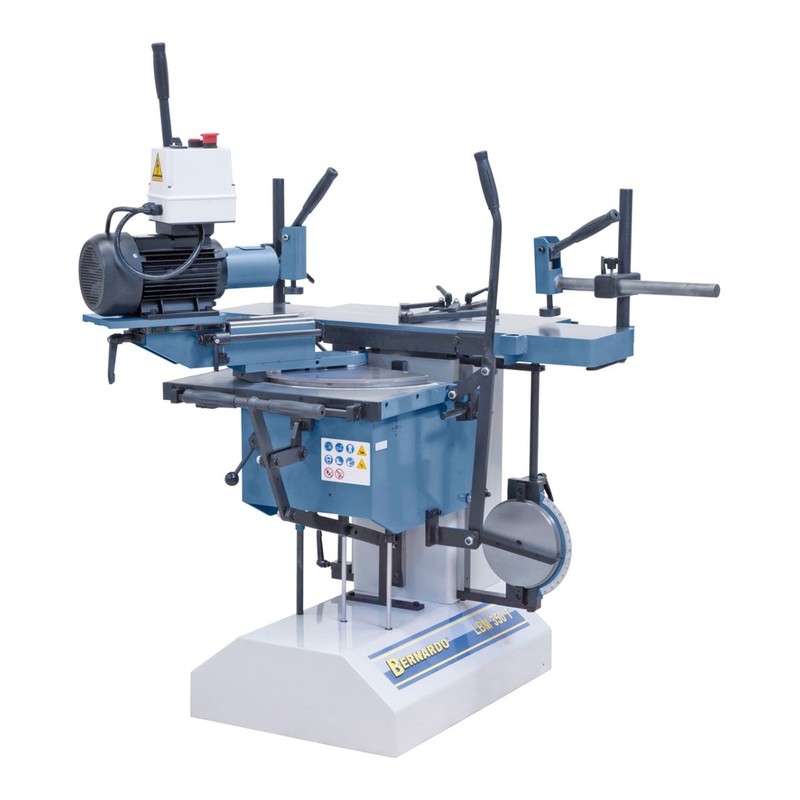

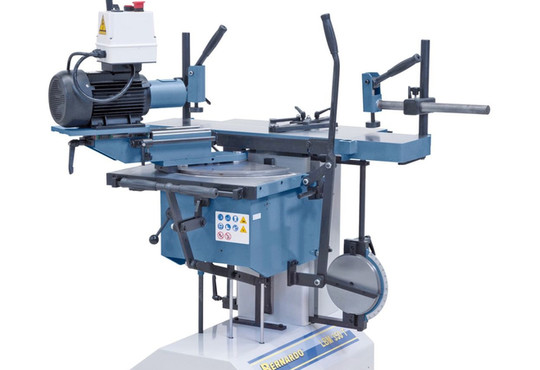

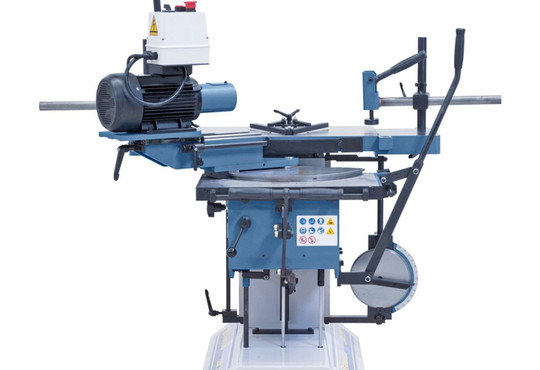

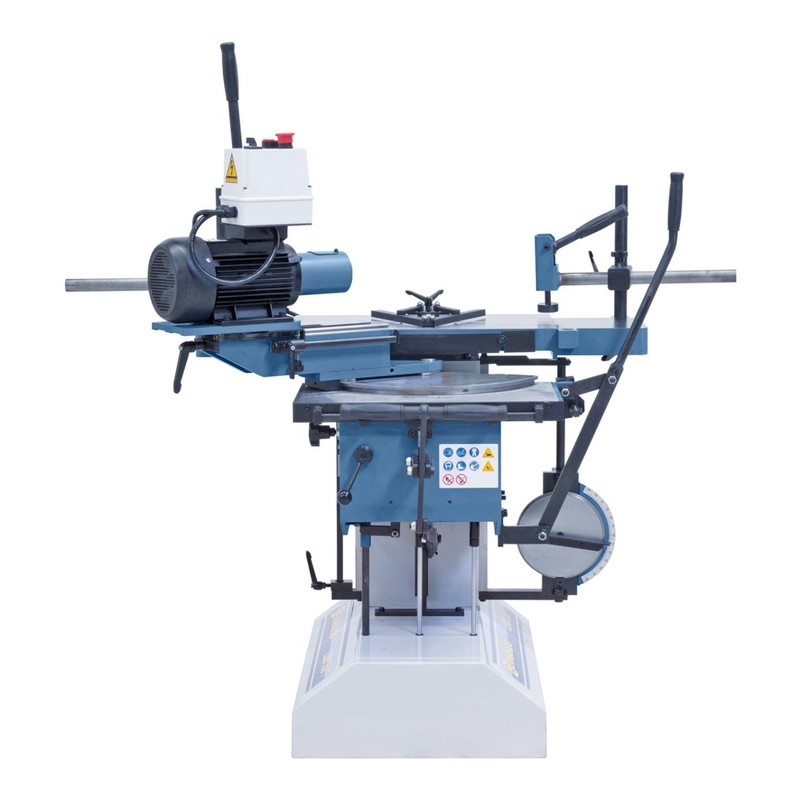

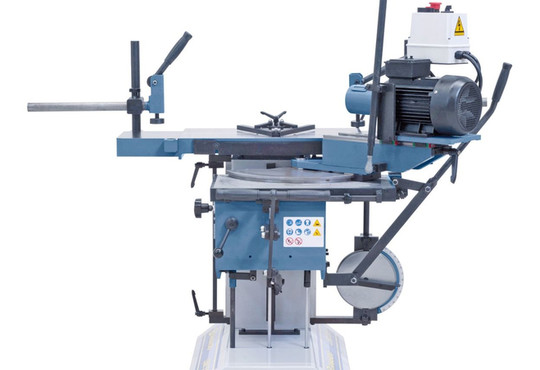

long slot drilling machine
Bernardo
Drilling
Type:
LBM 350 T
Good to know:
CE marking
Technische Daten:
- boring depht: 220 mm
- drilling length: 340 mm
- height adjustment: 145 mm

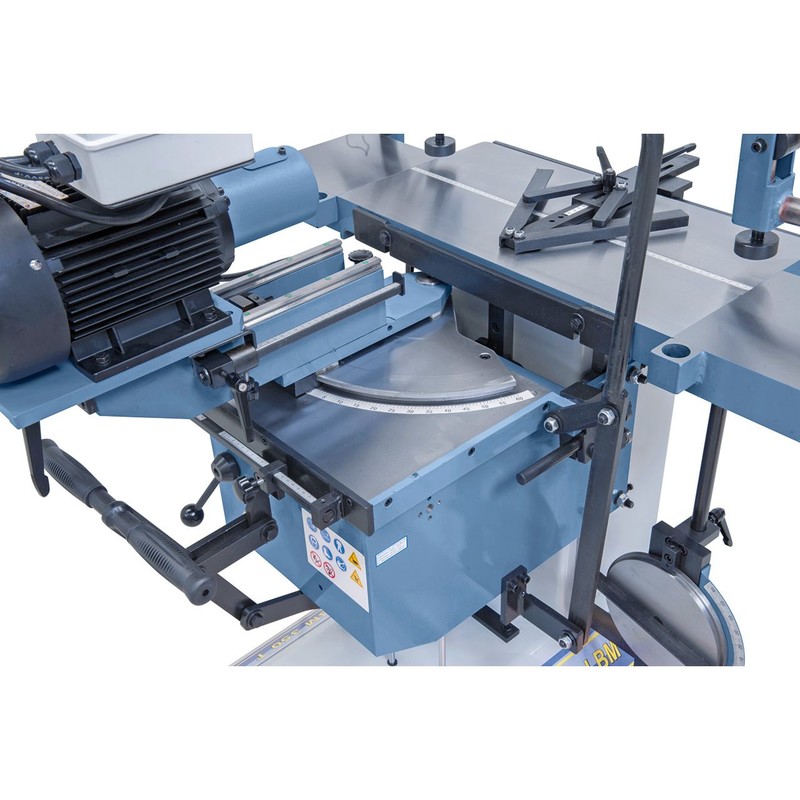

- drilling head tiltable: -60° bis +60°
- mieter fence adjustable: 30° - 90°
- motor power: 1,5 / 1,9 kW
- speed: 1400 / 2850 U/min
- suction connection: 100 mm
- machine length: 1200 mm
- machine width: 1050 mm
- weight: 240 kg
- Model year: 2022
- Location: at our showroom
Price:
2800,- € (net)

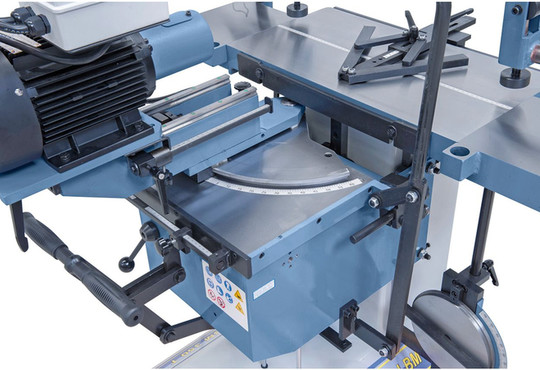

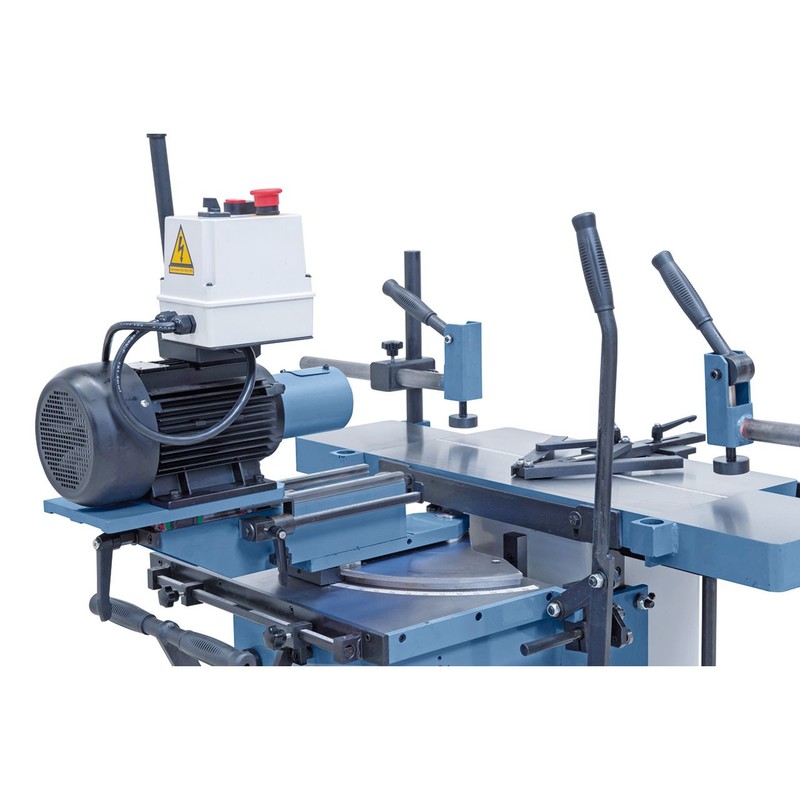

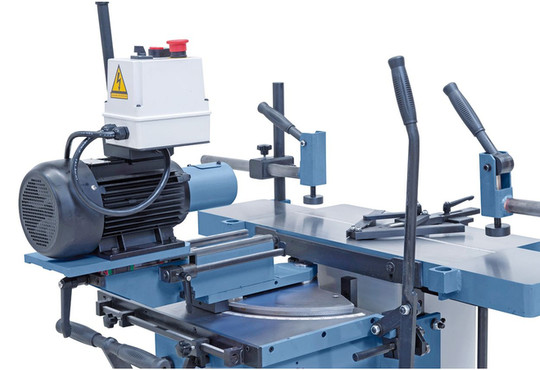

The top model of the LBM range features a drill head tilting 60° to the right and left, making it the perfect solution for assemblies around staircases, window and frame works. The motor is moved single handed and the work table is mounted firmly which allows for processing of oversize workpieces such as doors for example.
Properties
Maintenance-free linear guiding allows for feed of drill depth
Quick lift system allows for effi cient, economical processing without time-consuming winding of crank

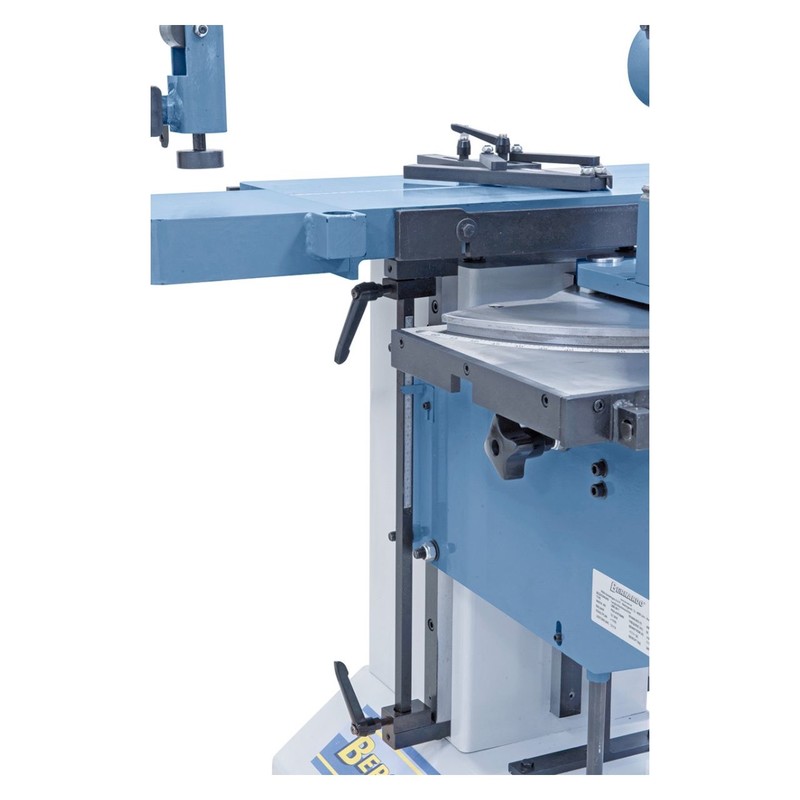

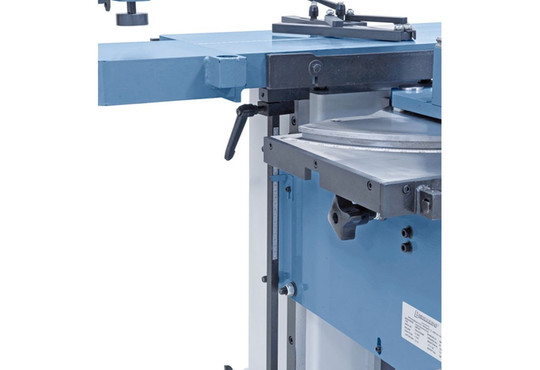

Smooth, stepless height setting of drill head features fi ne adjustment and gas pressure cylinder for counter balance

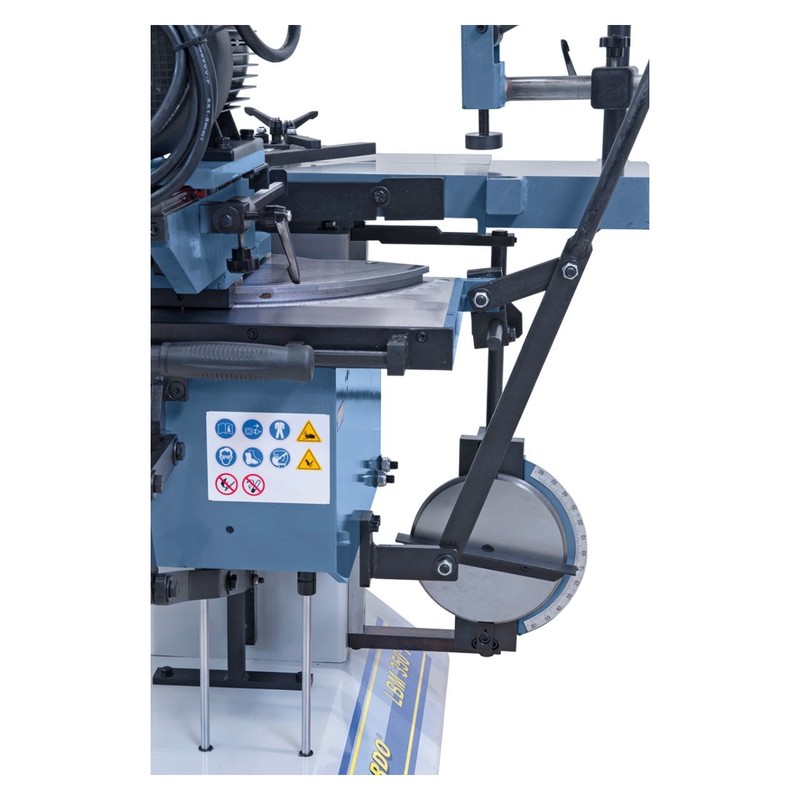

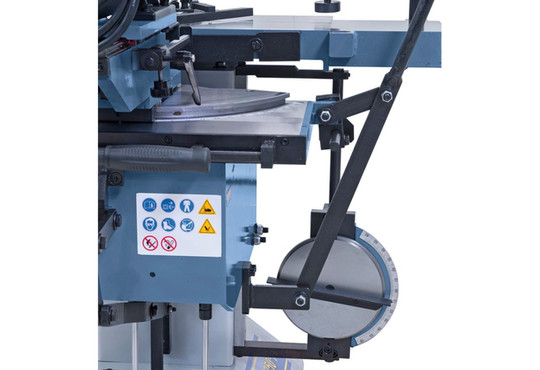

Cross travel and height adjustment features scales and adjustable fences
Robust steel construction eliminates vibrations
Drill depth adjustable via scale and fence
Height adjustment of drill head can be altered throughout vertical slotting

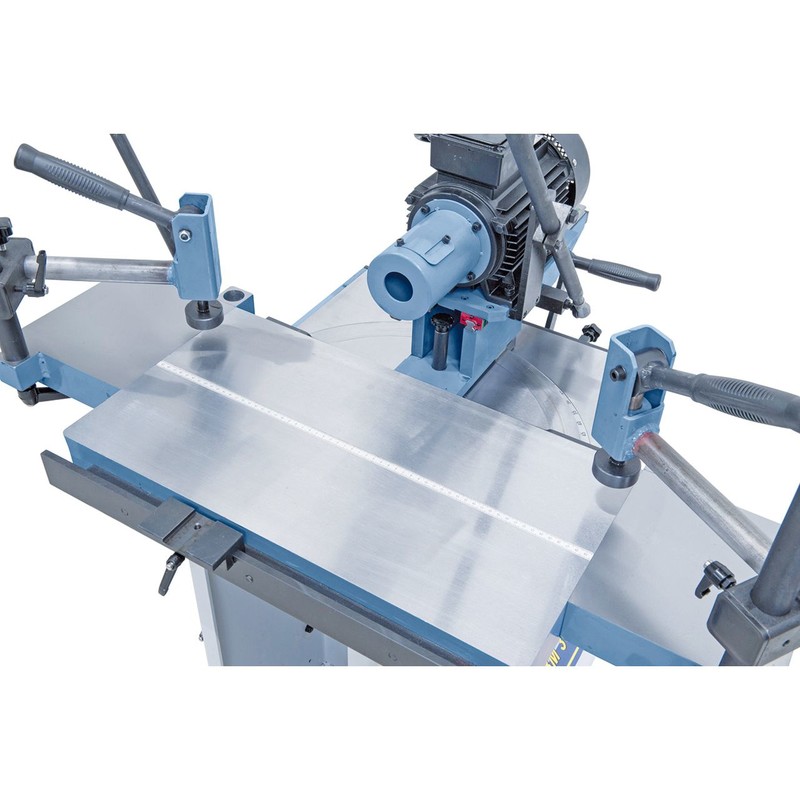

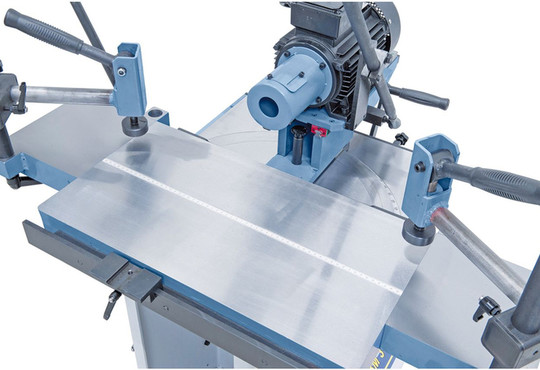

Large grey cast iron table with polished surface
Westcott drill chuck 0 - 20 mm complete with protective cover
Standard accessories
2 pcs. eccentric holder
2 pcs. table extension

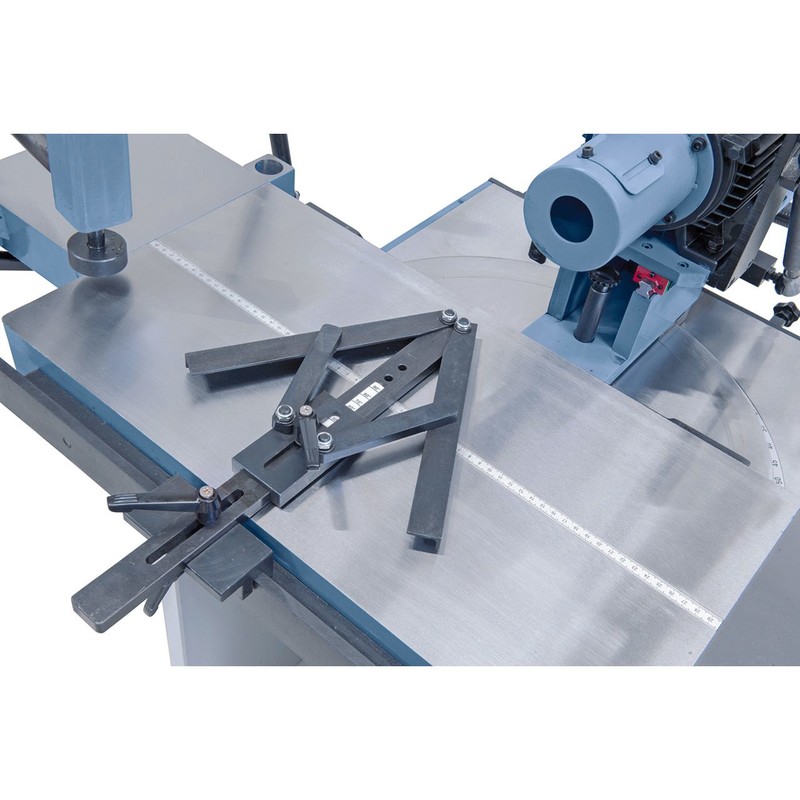

Adjustable double mitre fence (30° - 90°)

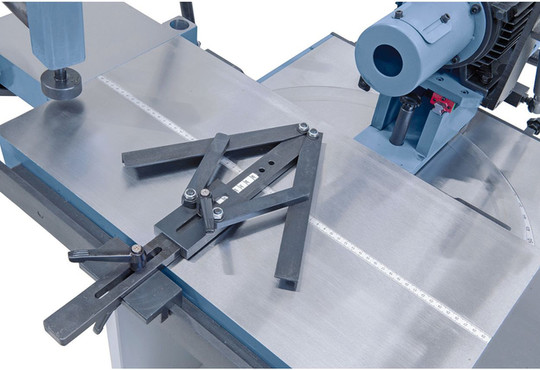

Template device
