hot air generator, workshop heater, hall heater
Fabbri
Heating
Type:
F85 c.v.
Good to know:
CE Marking, hot air fan, smoke fan
Technische Daten:
- flue capacity: 125 kW
- Conventional yeld capacity: 99 kW
- flue diameter: 180 mm
- hot air delivery pipes: 2 x 250 mm
- flue length: 750 mm
- oven width: 560 mm
- oven hight: 700mm
- air flow: 6300m³/h
- power consumption: 1500W
- aproximate surface to heat up: 1500m³
- area to be heated: 300/350 m²
- heater height without hot air conveying pipes: 1980 mm
- heater width: 800 mm
- heater length: 1280 mm
- weight: 415 kg
- Model year: 2024
- Location: not at stock

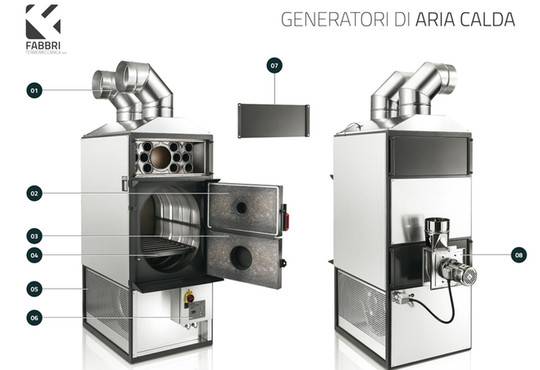

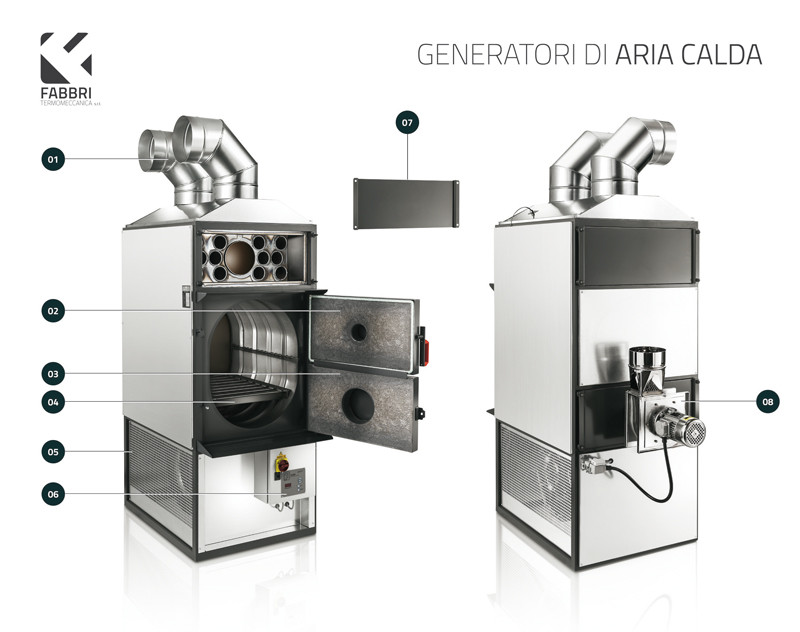

Horizontal oven made of thermal chrome plated stainless steel, reinforced with ribs.
Exchangers 2 or 3 smoke revs.
Inner side made of bright sheet metal for casing and insulation.
Outer side made of zinc plated sheet metal.
Frame made of painted profile.
Feeding doors with refractory and extractable grates.
Panels with refractory for pipes cleaning.

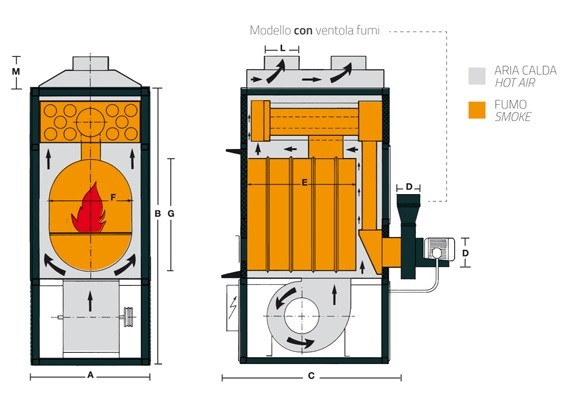

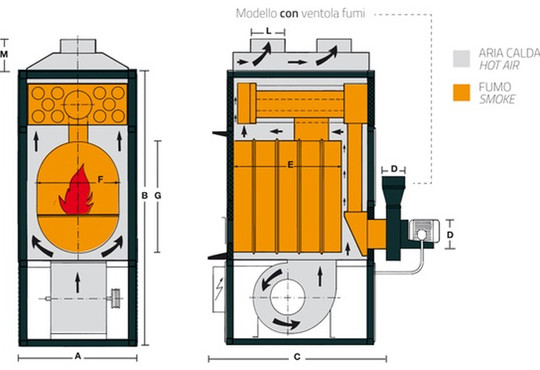

Double suction centrifugal fans for hot air delivery running at low regime of turns and arranged on special elastic suspensions driven by one or more electric motors.
Smoke extraction fan (except mod. F 28-F 55 sv - F 85 sv).
Electric command and control panel - adjusting thermostat. marking
