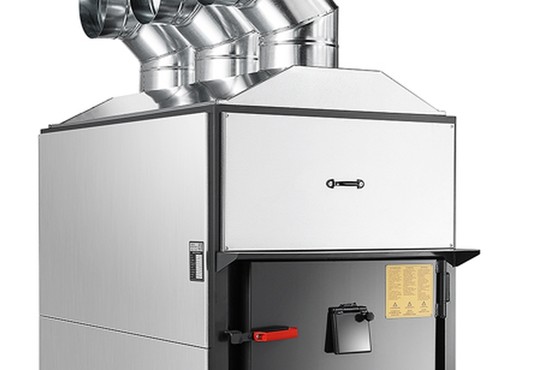

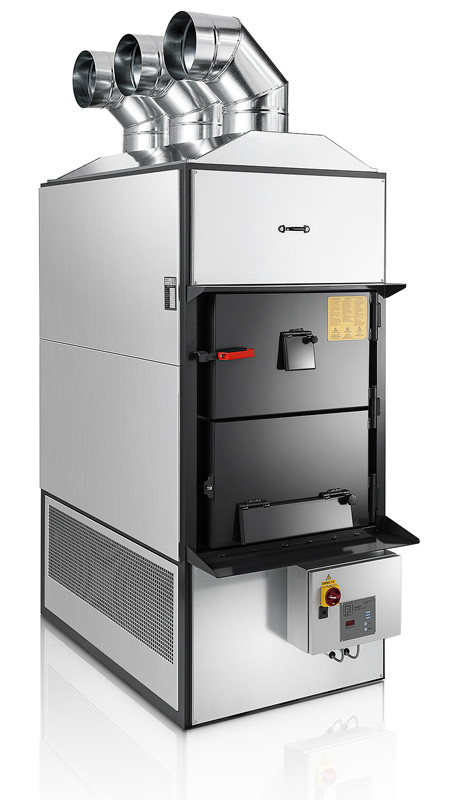

hot air generator, workshop heater, hall heater
Fabbri
Heating
Type:
F350
Good to know:
CE Marking, hot air fan, smoke fan
Technische Daten:
- flue capacity: 510 kW
- Conventional yeld capacity: 407 kW
- flue diameter: 250 mm
- hot air delivery pipes: 4 x 350 mm
- flue length: 1900 mm
- oven width: 900 mm
- oven hight: 900 mm
- air flow: 26000 m³/h
- power consumption: 4500 W
- aproximate surface to heat up: 8000 m³
- area to be heated: 1800 m²
- heater height without hot air conveying pipes: 3000 mm
- heater width: 1220 mm
- heater length: 2700 mm
- weight: 1575 kg
- Model year: 2024
- Location: in our showroom

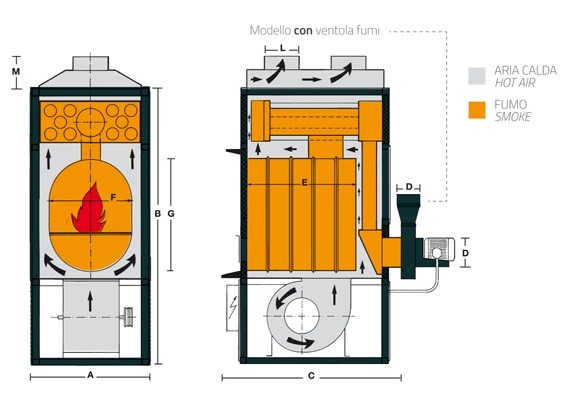

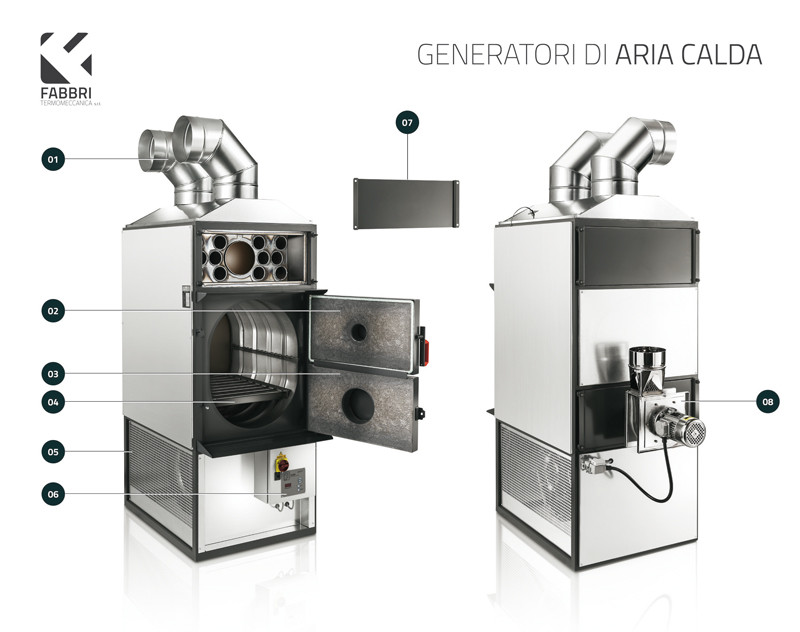

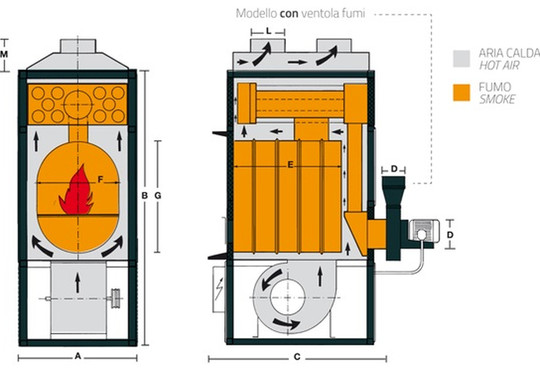

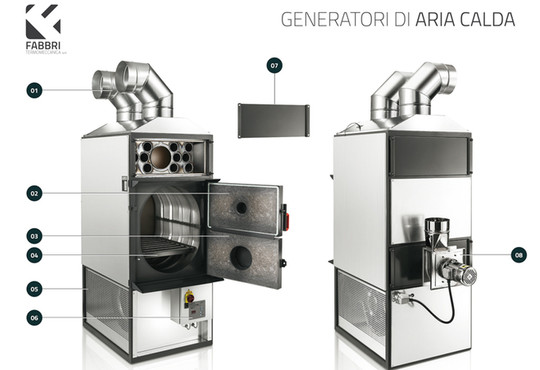

Horizontal oven made of thermal chrome plated stainless steel, reinforced with ribs.
Exchangers 2 or 3 smoke revs.
Inner side made of bright sheet metal for casing and insulation.
Outer side made of zinc plated sheet metal.
Frame made of painted profile.
Feeding doors with refractory and extractable grates.
Panels with refractory for pipes cleaning.
Double suction centrifugal fans for hot air delivery running at low regime of turns and arranged on special elastic suspensions driven by one or more electric motors.
Smoke extraction fan (except mod. F 28-F 55 sv - F 85 sv).

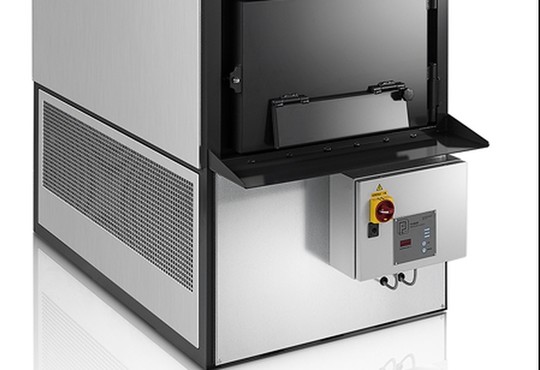

Electric command and control panel - adjusting thermostat. marking
Exchangers 2 or 3 smoke revs.
Inner side made of bright sheet metal for casing and insulation.
Outer side made of zinc plated sheet metal.
Frame made of painted profile.
Feeding doors with refractory and extractable grates.
Panels with refractory for pipes cleaning.
Double suction centrifugal fans for hot air delivery running at low regime of turns and arranged on special elastic suspensions driven by one or more electric motors.
Smoke extraction fan (except mod. F 28-F 55 sv - F 85 sv).
Electric command and control panel - adjusting thermostat. marking
