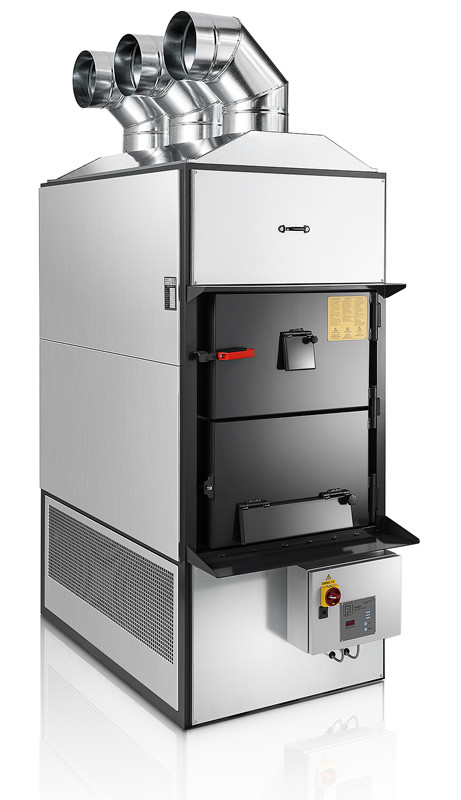

hot air generator, workshop heater, hall heater
Fabbri
Heating
Type:
F120
Good to know:
CE Marking, hot air fan, smoke fan
Technische Daten:
- flue capacity: 175 kW
- Conventional yeld capacity: 140 kW
- flue diameter: 200 mm

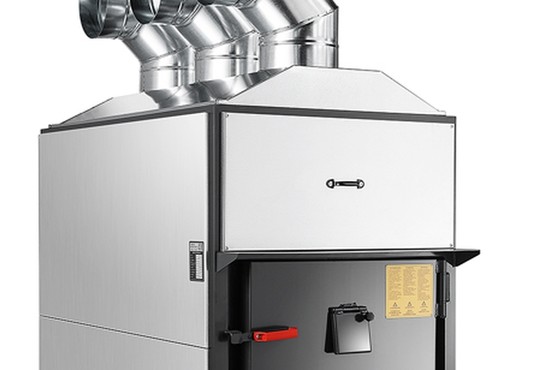

- hot air delivery pipes: 3 x 250 mm
- flue length: 950 mm
- oven width: 600 mm
- oven hight: 860 mm
- air flow: 6300 m³/h
- power consumption: 8900 W
- aproximate surface to heat up: 2200 m³
- area to be heated: 500/600 m²
- heater height without hot air conveying pipes: 2200 mm
- heater width: 930 mm
- heater length: 1700 mm
- weight: 615 kg
- Model year: 2024
- Location: in our showroom

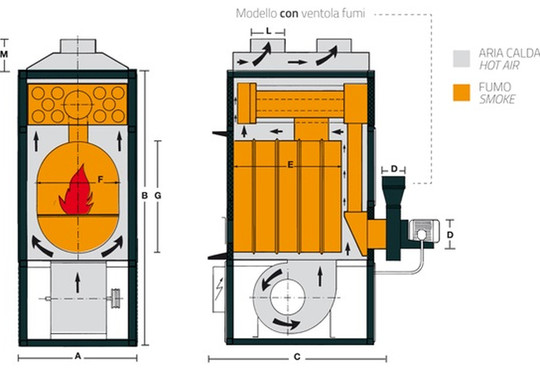

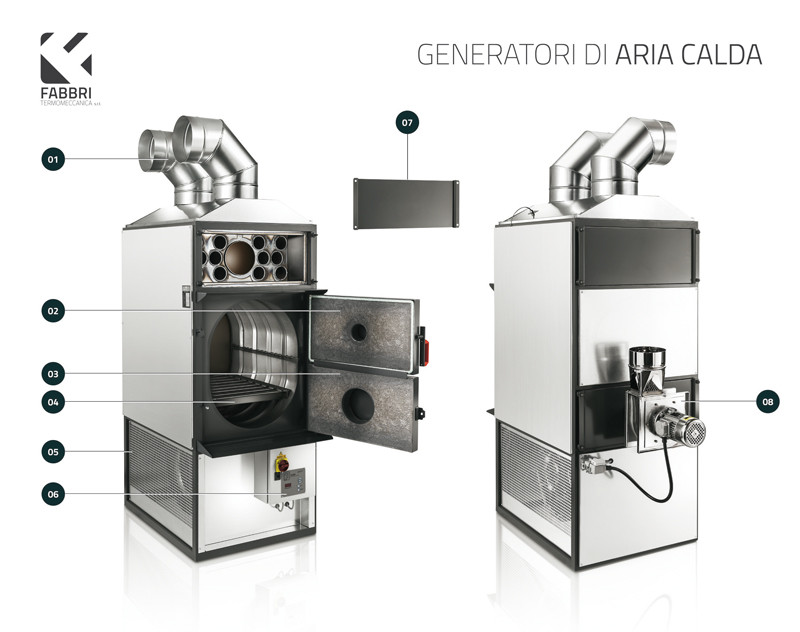

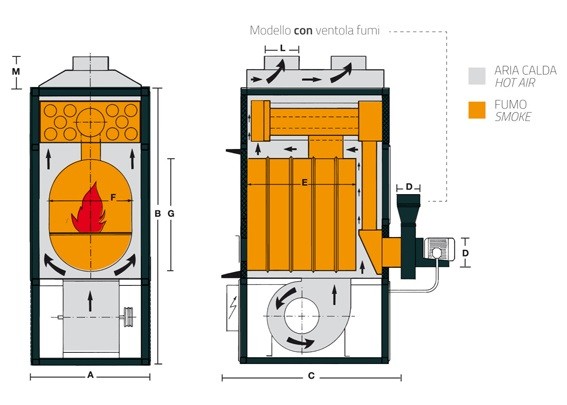

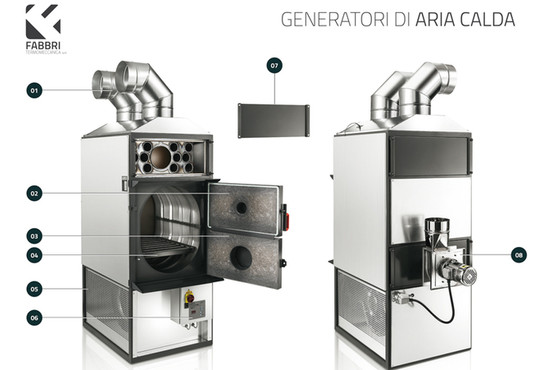

Horizontal oven made of thermal chrome plated stainless steel, reinforced with ribs.
Exchangers 2 or 3 smoke revs.
Inner side made of bright sheet metal for casing and insulation.
Outer side made of zinc plated sheet metal.
Frame made of painted profile.
Feeding doors with refractory and extractable grates.
Panels with refractory for pipes cleaning.
Double suction centrifugal fans for hot air delivery running at low regime of turns and arranged on special elastic suspensions driven by one or more electric motors.
Smoke extraction fan (except mod. F 28-F 55 sv - F 85 sv).

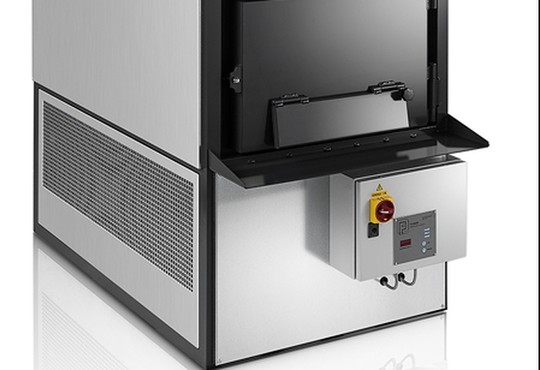

Electric command and control panel - adjusting thermostat. marking
