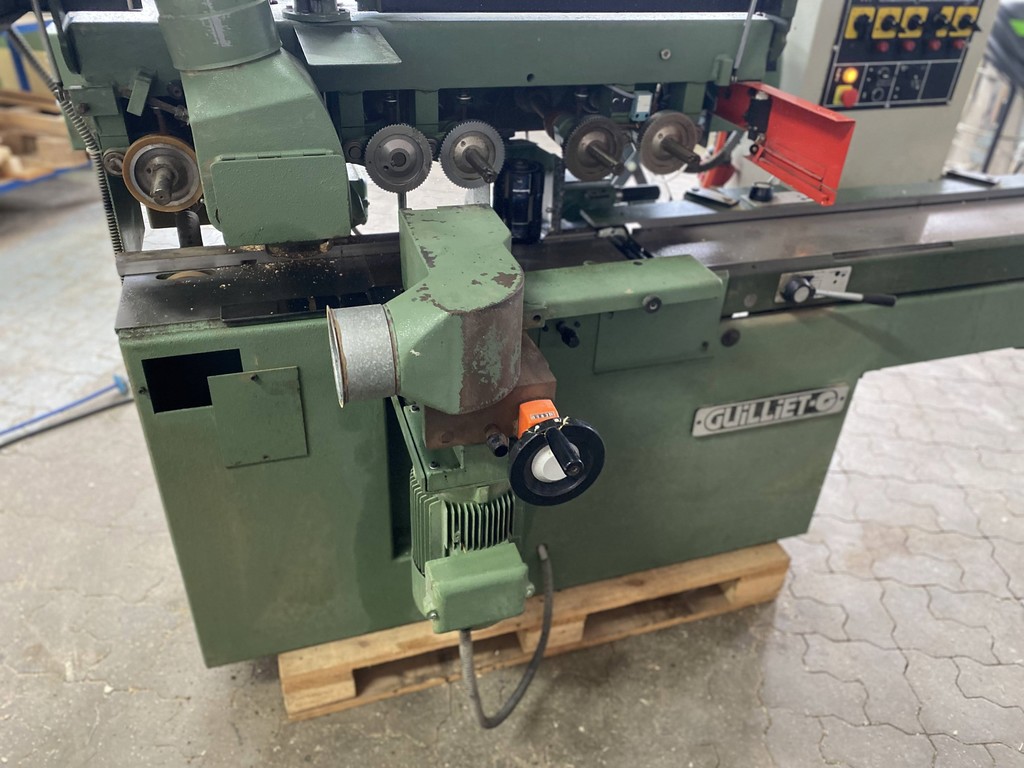

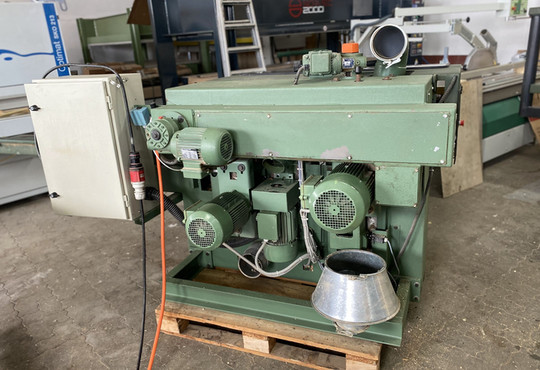

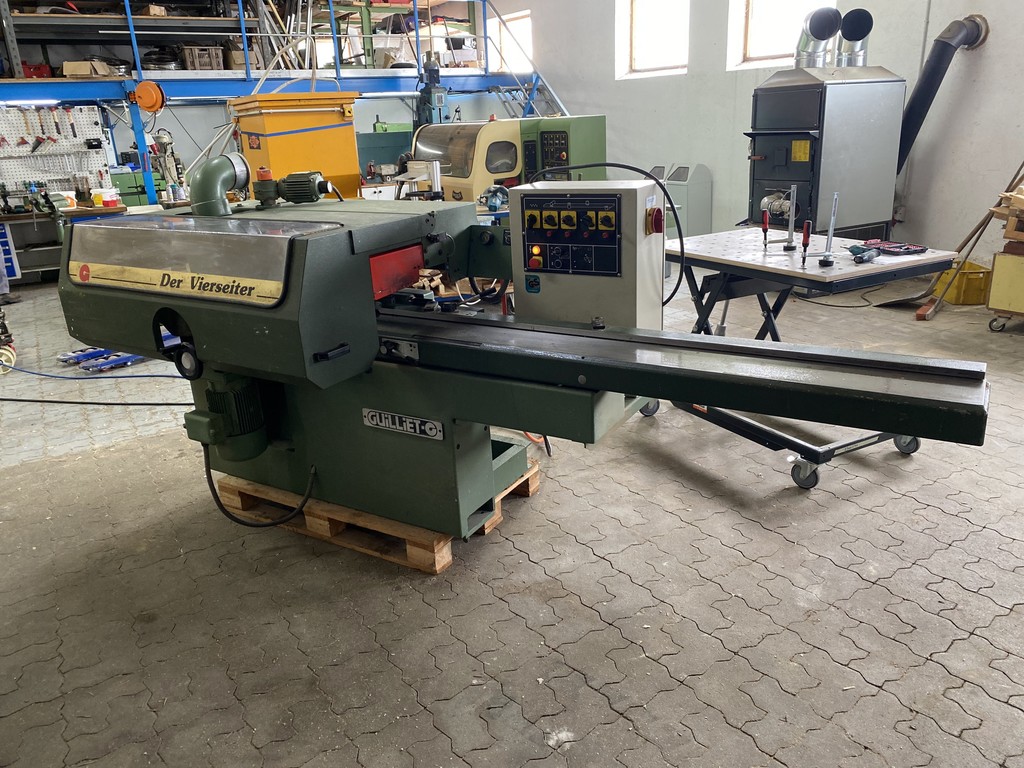

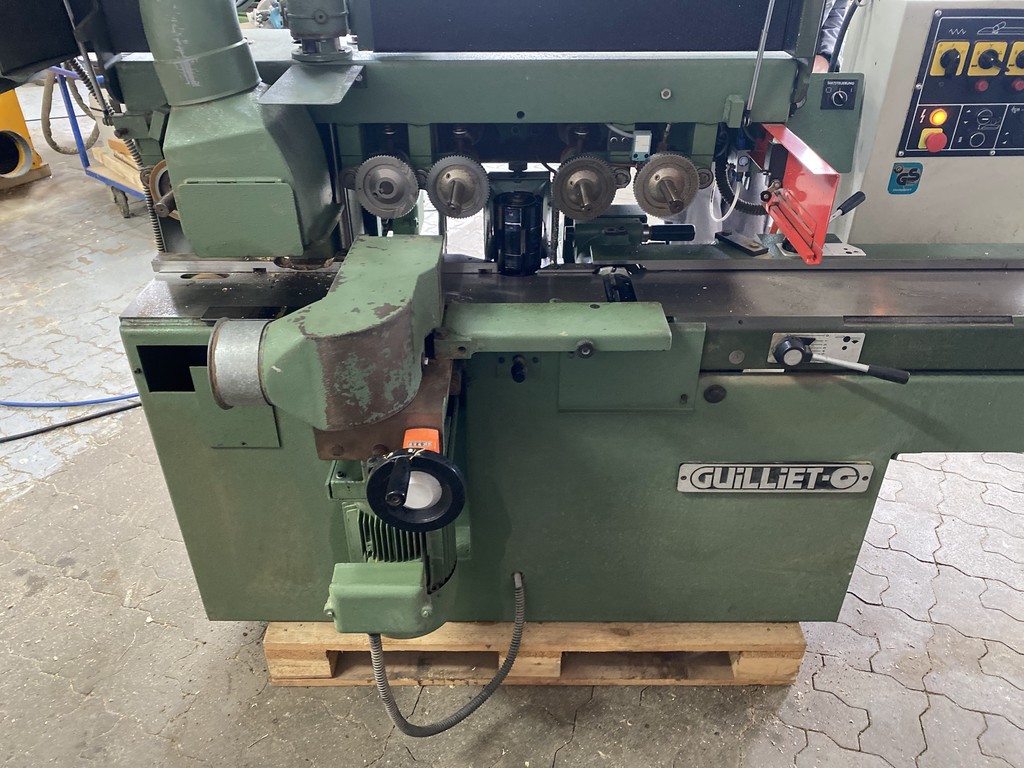

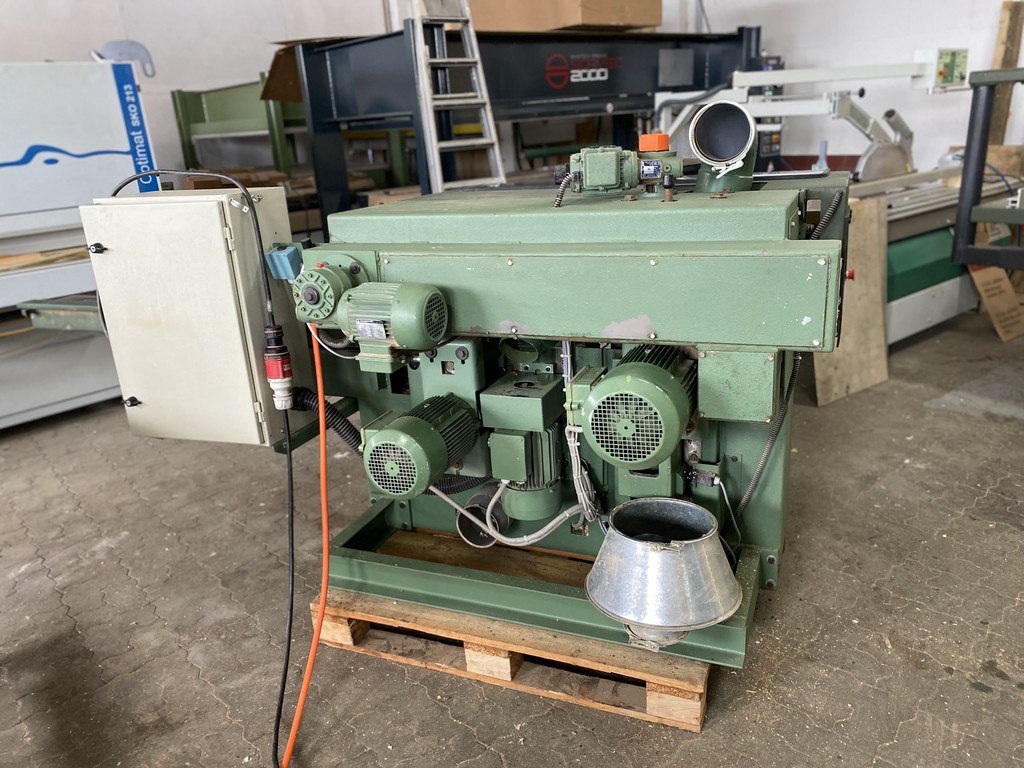

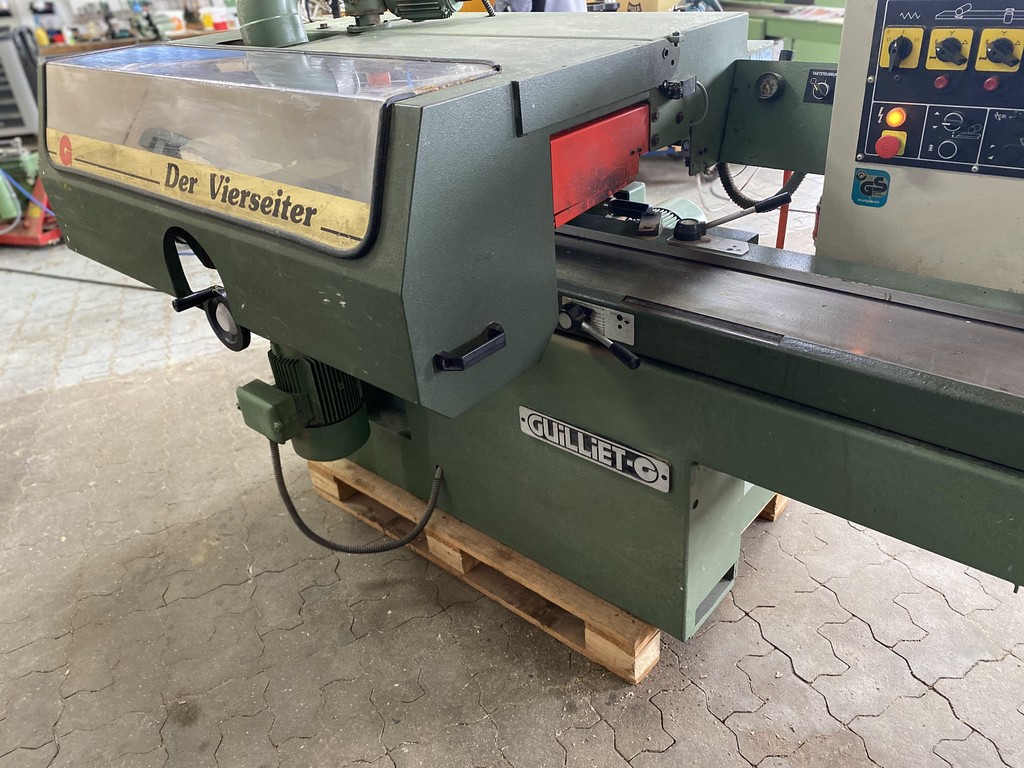

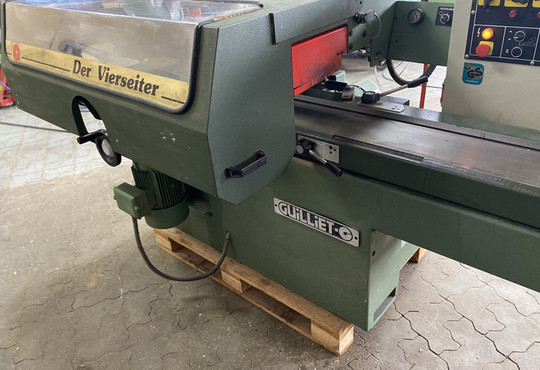

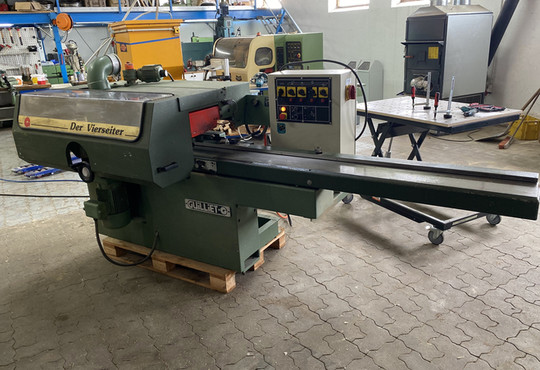

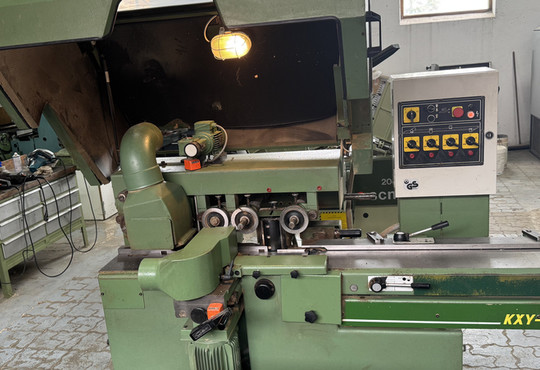

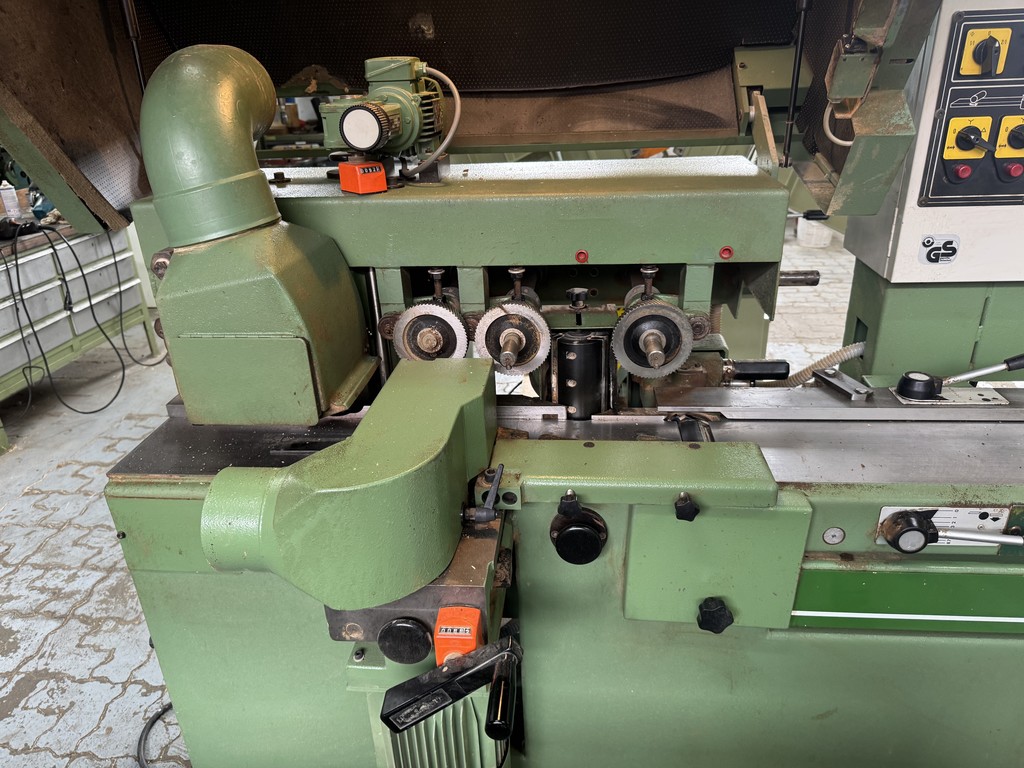

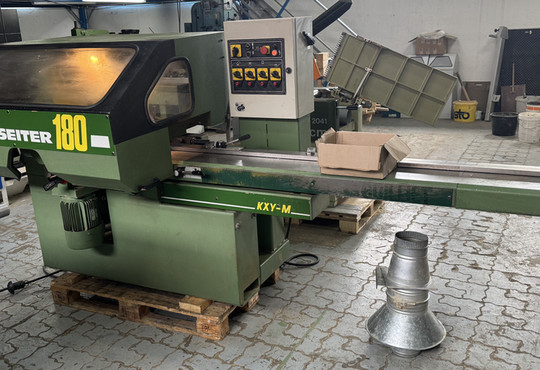

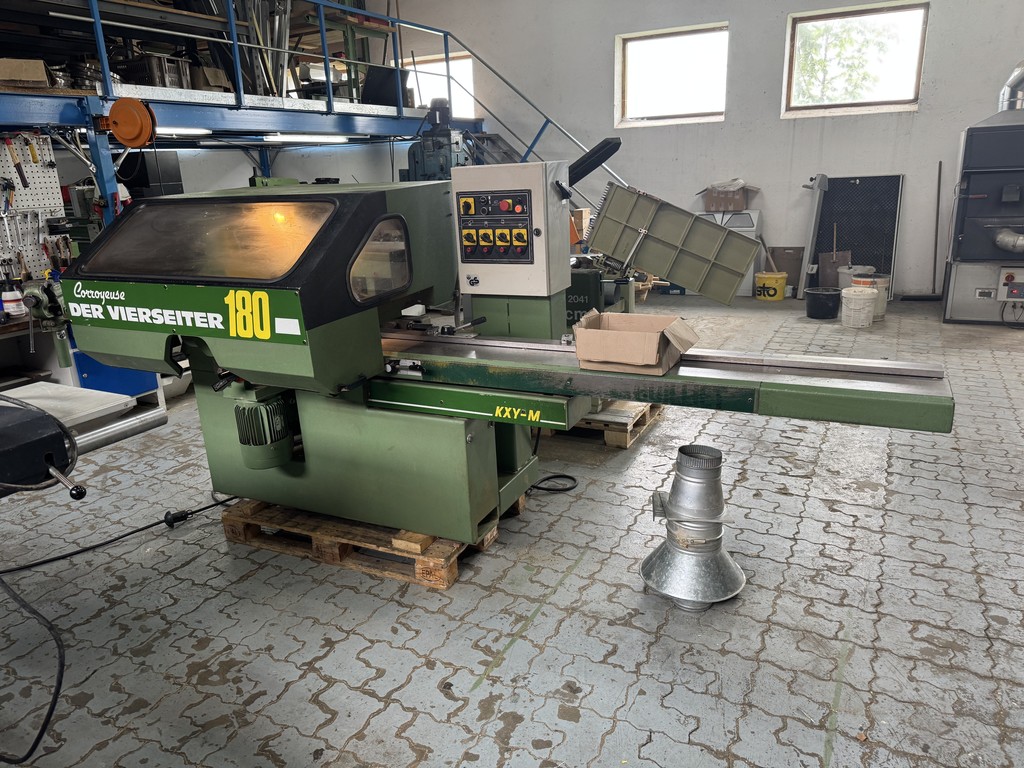

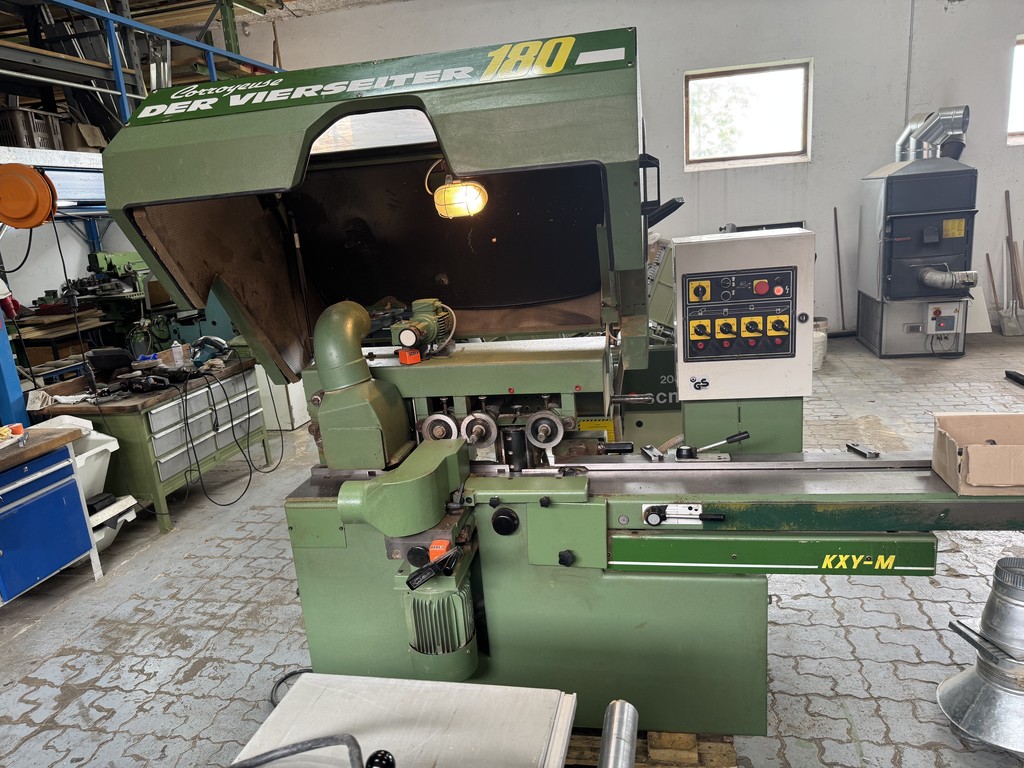

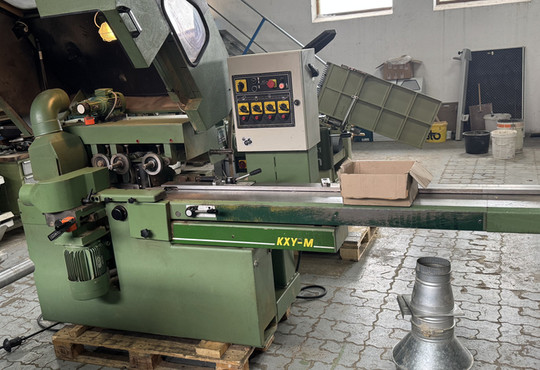

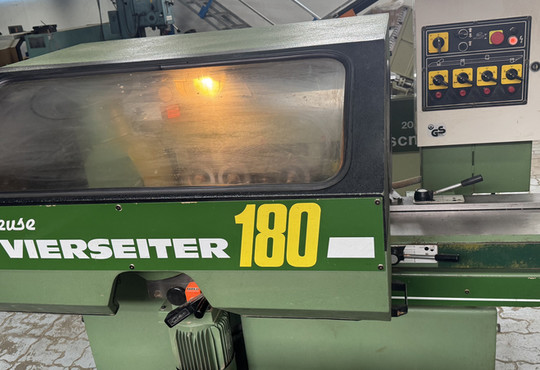

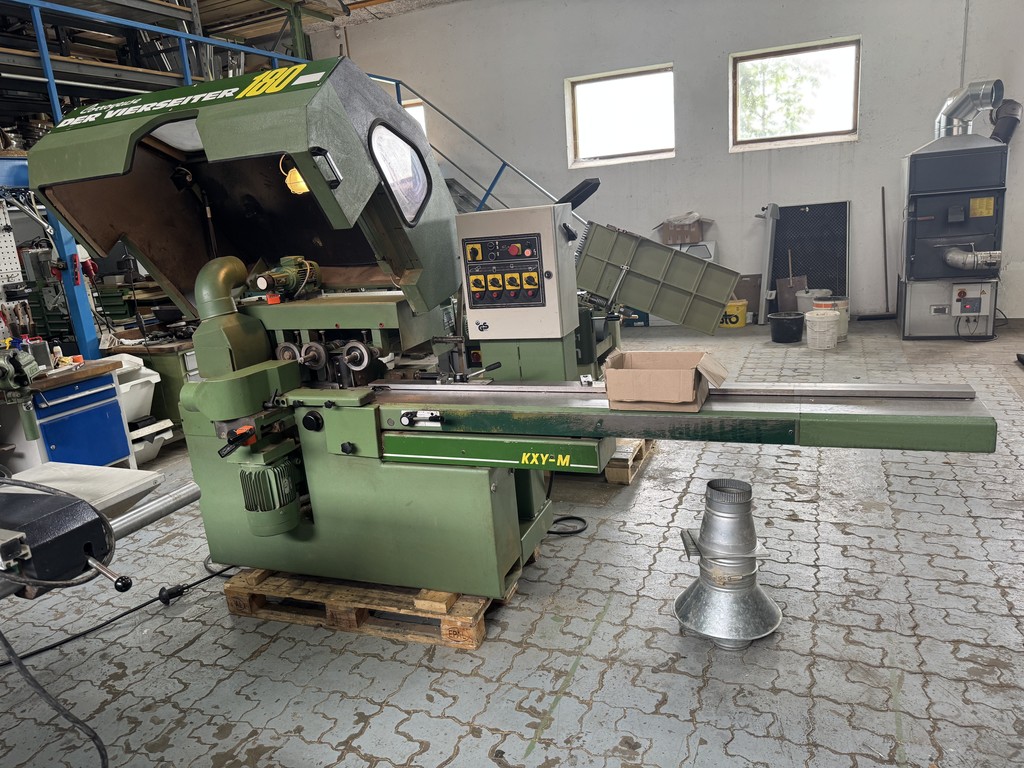

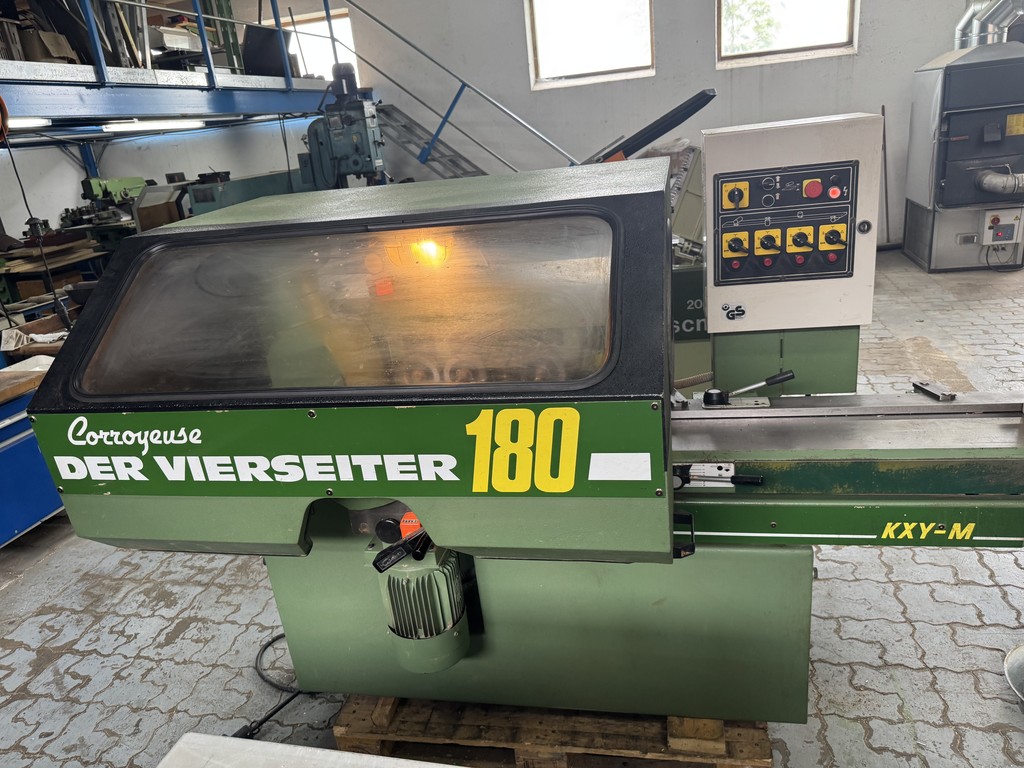

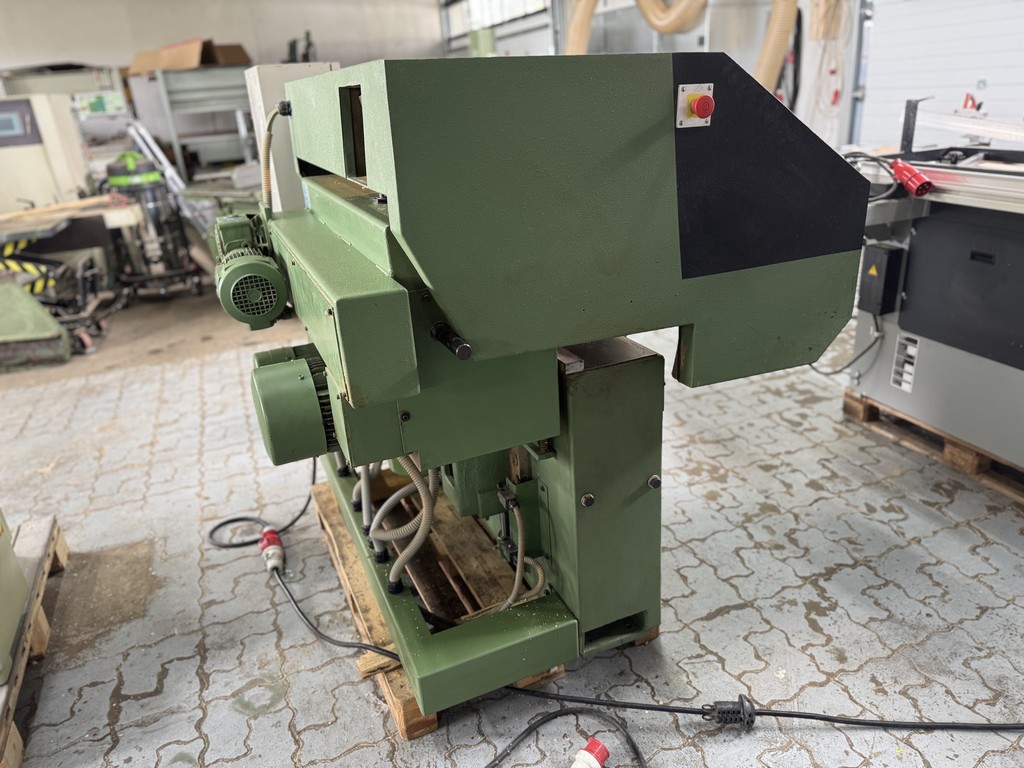

four side planing machine
Guilliet
Planing
Type:
KXY
Technische Daten:
- working width: 180 mm
- working height: 120 mm

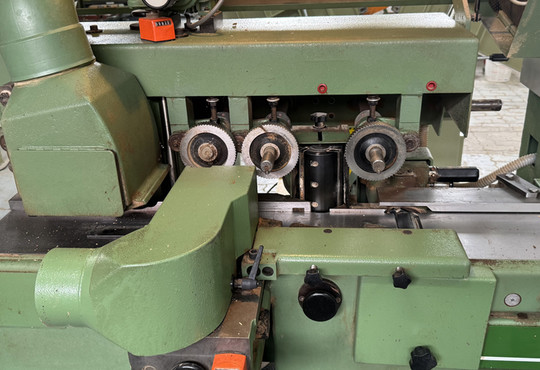

- working spindles: 4
- spindle following: down, right, left, up
- motor power spindle down: 3,7 kW
- motor power spindle right: 3,7 kW
- motor power spindle left: 3,7 kW
- motor power spindle up: 5,5 kW
- adjustment spindle down: -
- adjustment spindle right: -
- adjustment spindle left: manual
- adjustment spindle up: electric
- cutter heads: turn cutter
- feed speed: 2
- feed pressure: feather
- current consumption: 38 A
- motor brake: automatisch
- Model year: 1989
- Location: at our showroom
