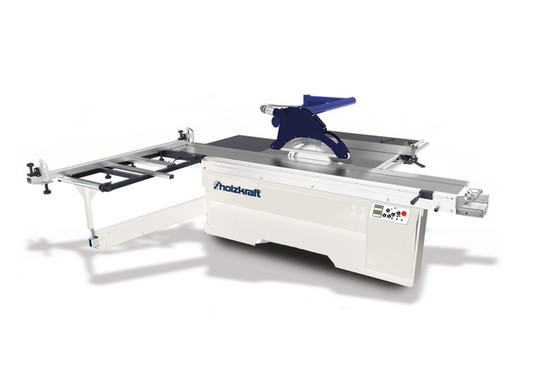

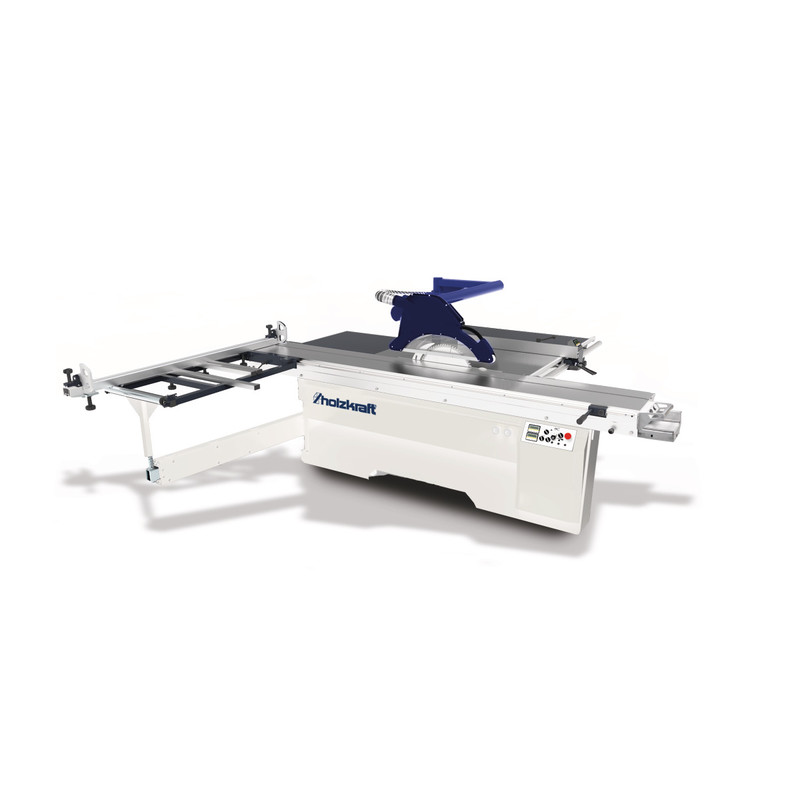

sliding table saw
Holzkraft
sliding table saws
Type:
FKS 550-3200 M A PRO
Good to know:
CE marking, cutting height 200 mm
Technische Daten:
- sliding carriage length: 3200 mm
- cutting width with rip fence: 1450 mm
- cutting width at the cross cut: 3200 mm
- cutting height 90°: 200 mm
- cutting height 45°: 140 mm
- scoring unit: yes
- heigh adjustment: motorized
- tilt adjustment: motorized
- rip fence adjustment: manual
- display saw blade tilt: digital
- display saw blade height: digital
- display rip fence: digital
- display crosscut: scala
- saw blade diameter: 550 mm
- saw blade speed: 2800 / 3665 / 4800
- motor power: 7,5 kW
- motor brake: yes / automatically
- suction connection: 80 mm und 120 mm
- machine length: 3400 mm
- machine width: 3700 mm
- machine height: 1330 mm
- weight: 1100 kg
- Model year: 2022
- Location: at our showroom
Price:
18850,- € (net)
Saw blade tilt and height adjustment motorized and with digital display.
Max. cutting height 200mm

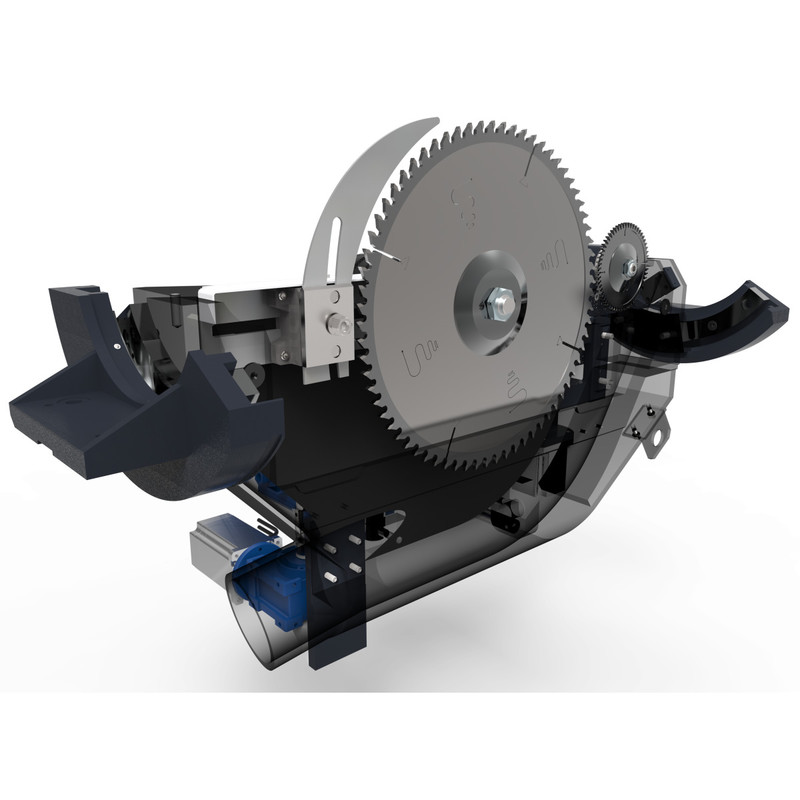

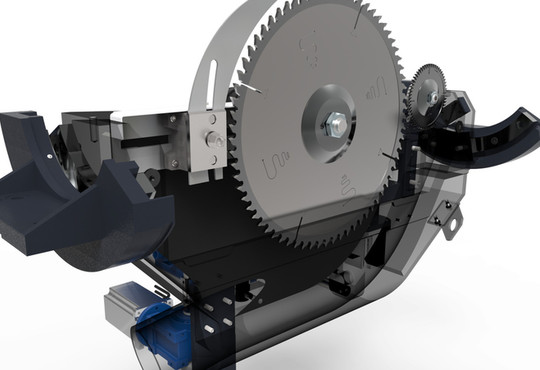

scoring device with separate drive motor
Main saw blade with belt drive and speeds 2800/3665/4800 min¯¹
High dead weight ensures vibration-free operation

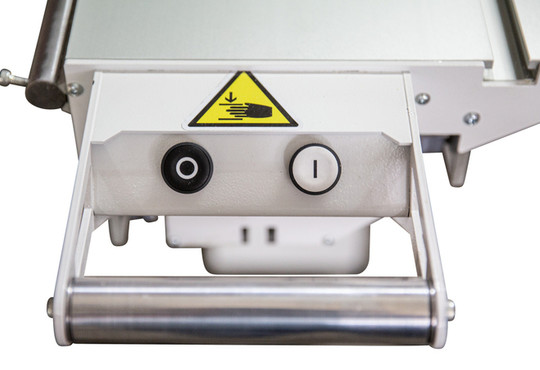

Large cantilever table with material roller

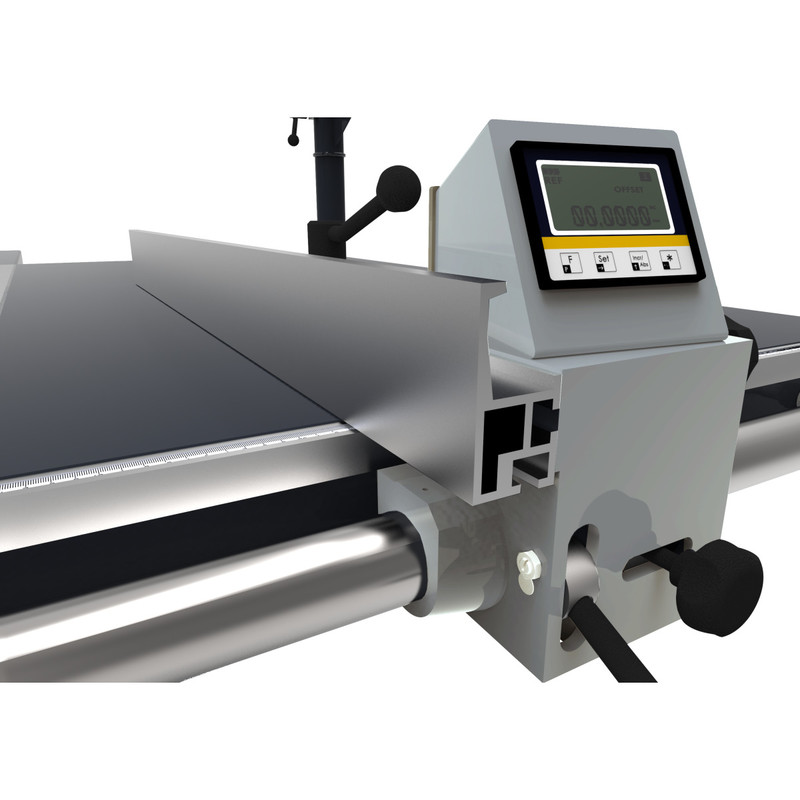

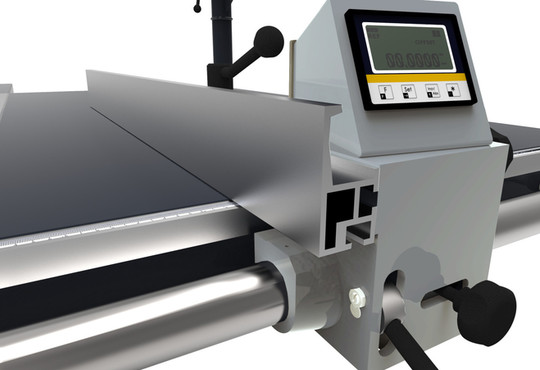

Rip fence with round bar guide and digital position indicator
Extendable aluminum longitudinal fence with two folding stops
7.5 kW main motor mounted on robust cast iron frame

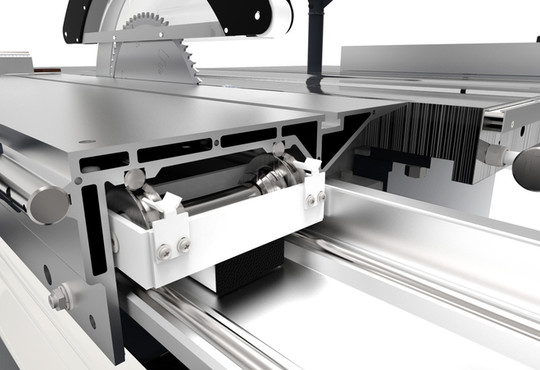

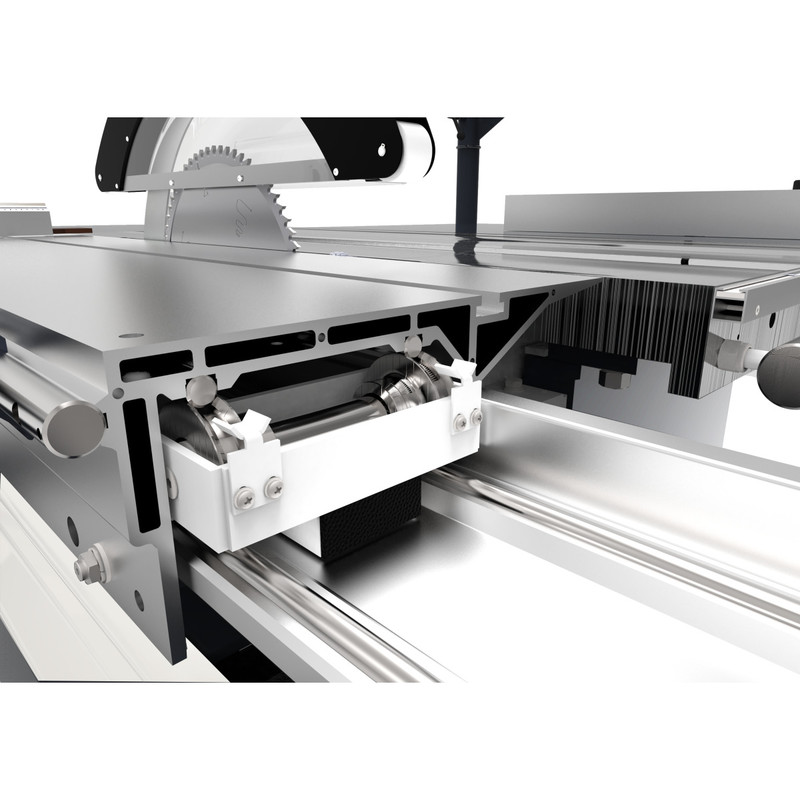

Quadruple-mounted sliding carriage made of anodized aluminum with high torsional rigidity
Multiple locking device on the sliding table
Table widening and table extension made of strong sheet metal as standard

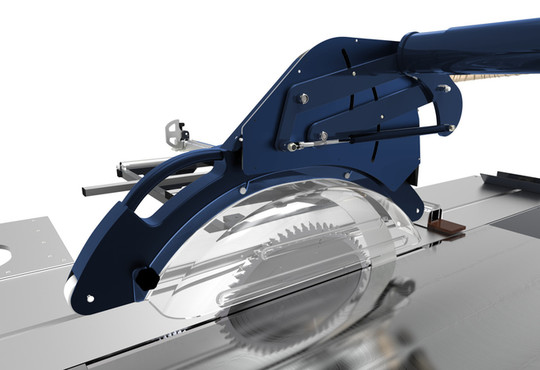

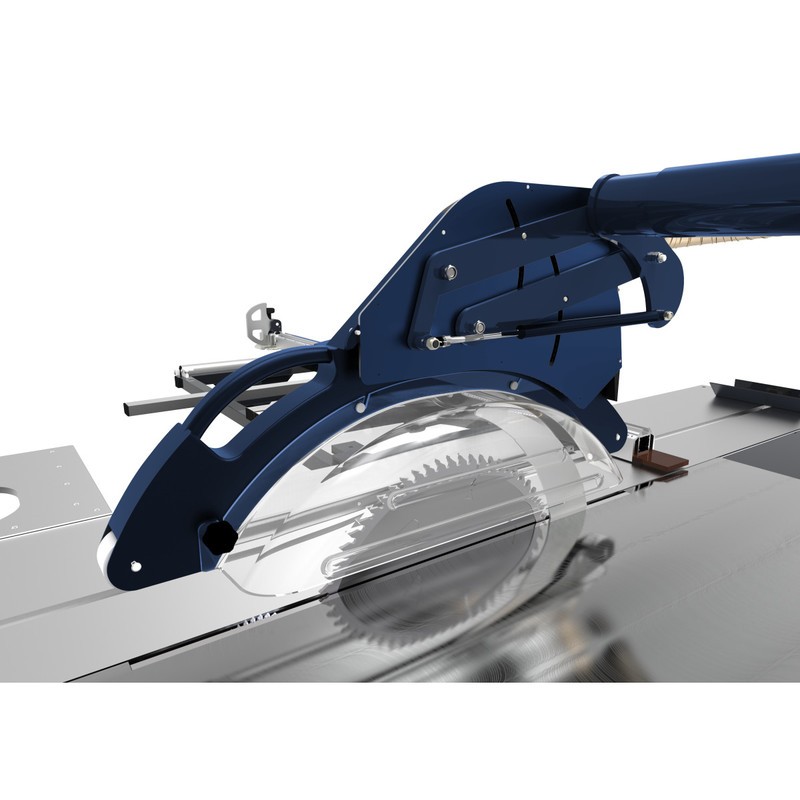

Large pendulum protection hood can be conveniently swung up by means of a gas pressure spring
Saw blade clamping via tool-free Rapid system
