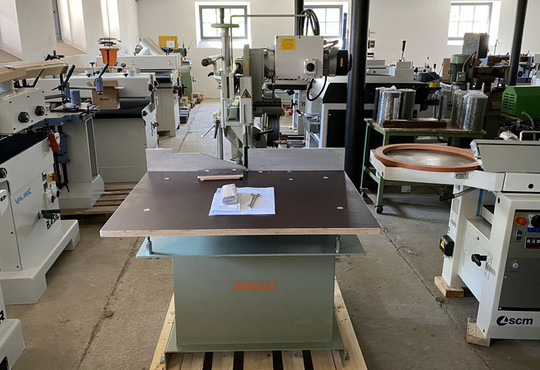

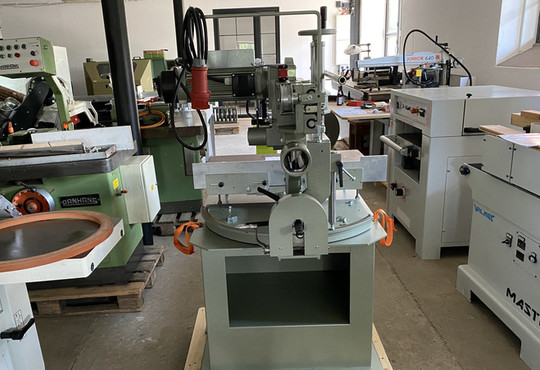

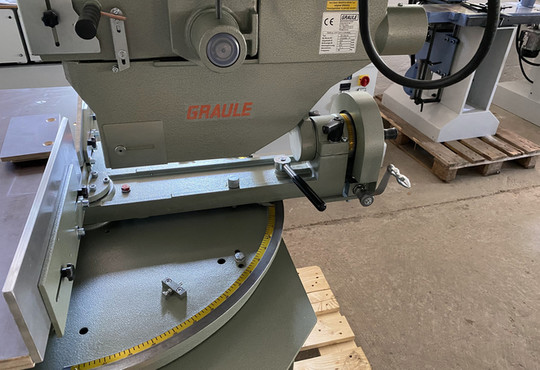

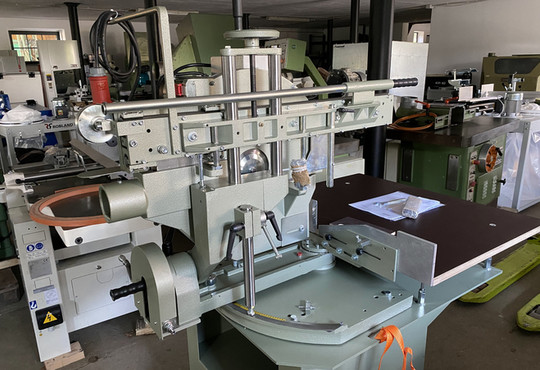

Crosscut and miter saw
Graule
cross cut saws
Type:
ZS 200 N
Technische Daten:
- cutting hight at 90°: 200 mm
- cutting width: 410 mm
- miter square horizontal: 45° - 90° - 25°
- miter square vertical: 60° - 90° -30°
- roller convoyer/ supporting table: no
- saw blade diameter: 520 mm
- speed: 2800U/min
- motor power: 5 kW
- motor brake: yes
- suction connection: 100mm
- Gewicht: 300kg
- Model year: 2023
- Location: Verfügbar ab 23/2023
Price:
11260,- € (net)

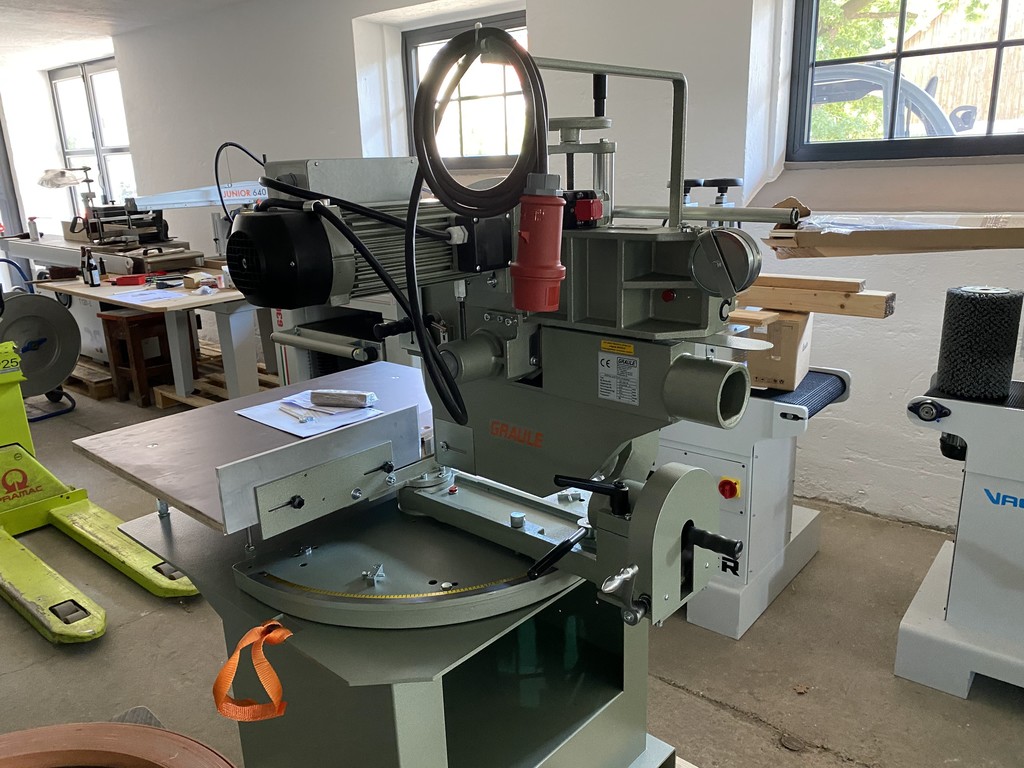

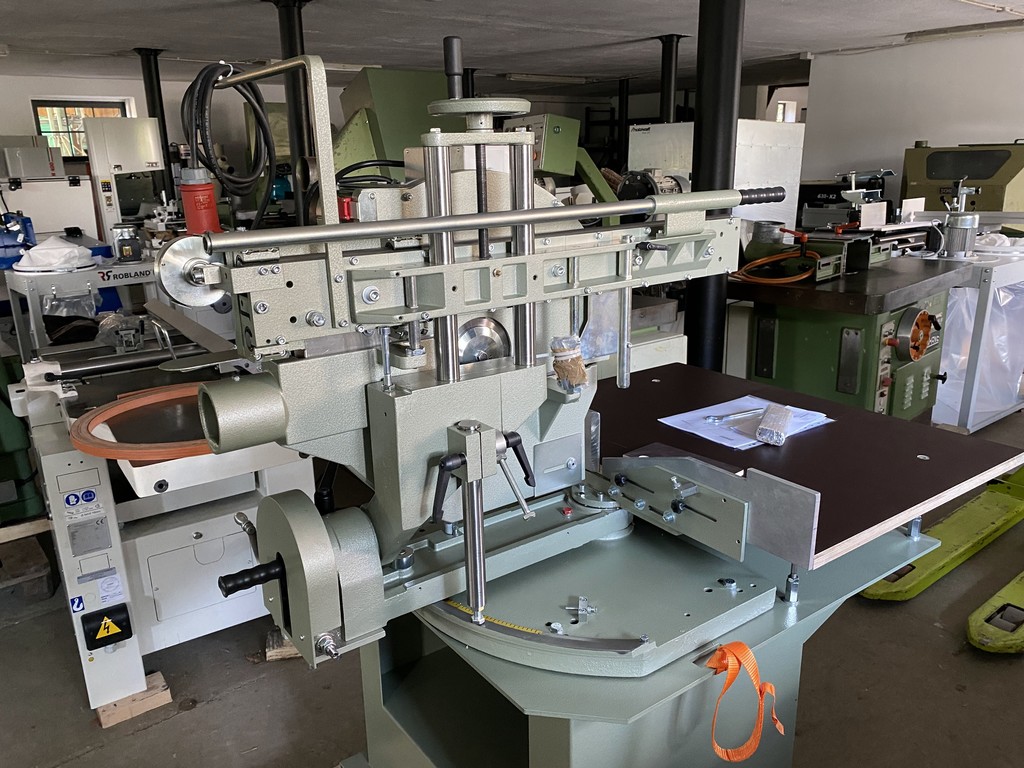

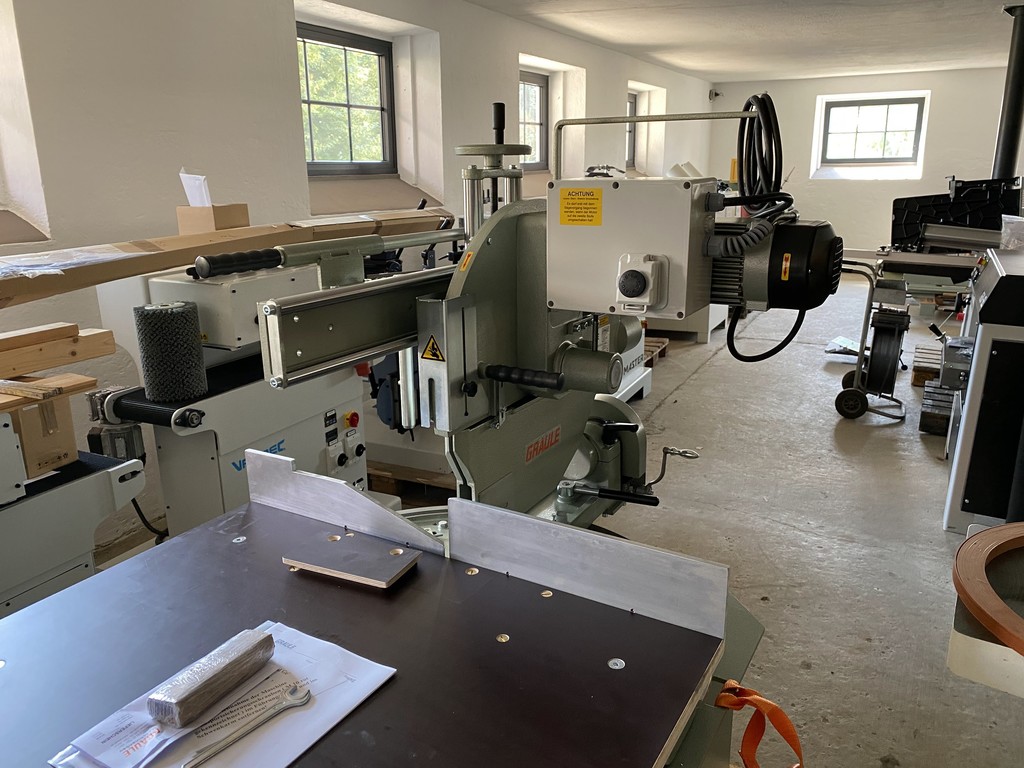

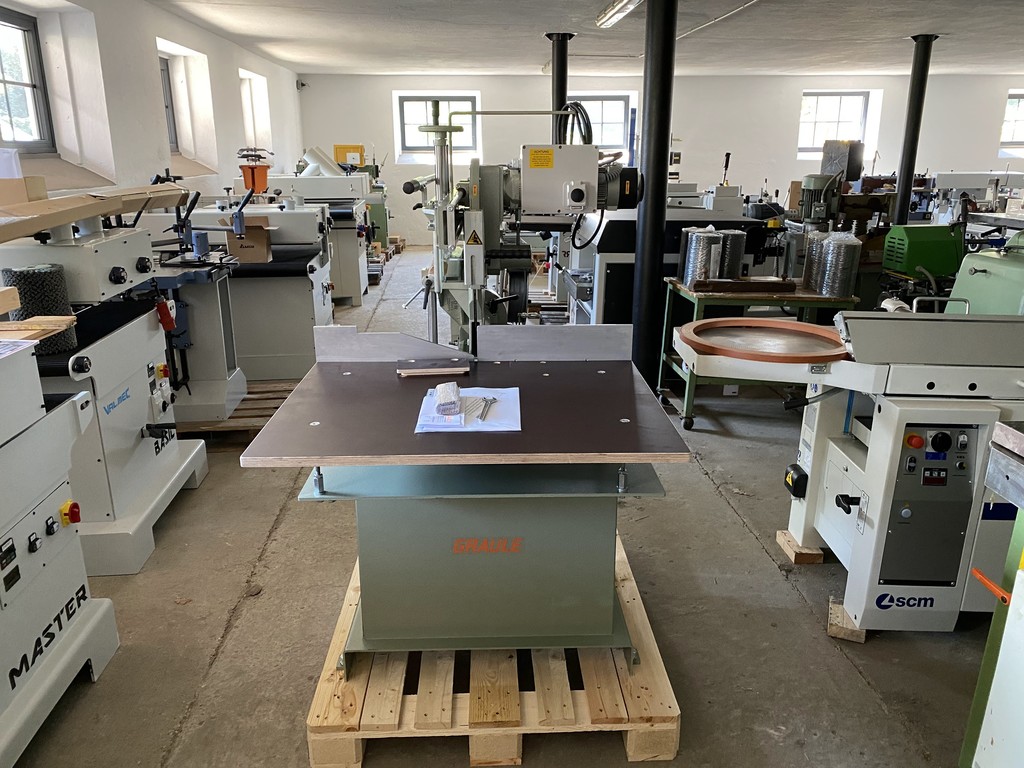

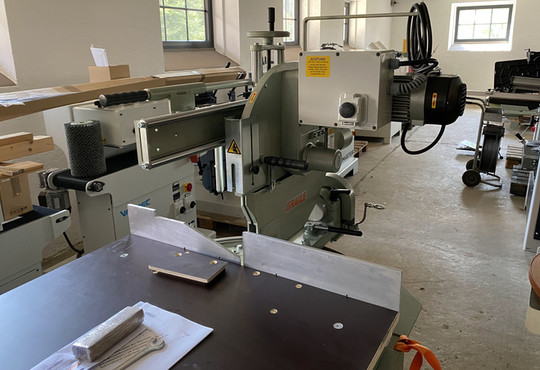

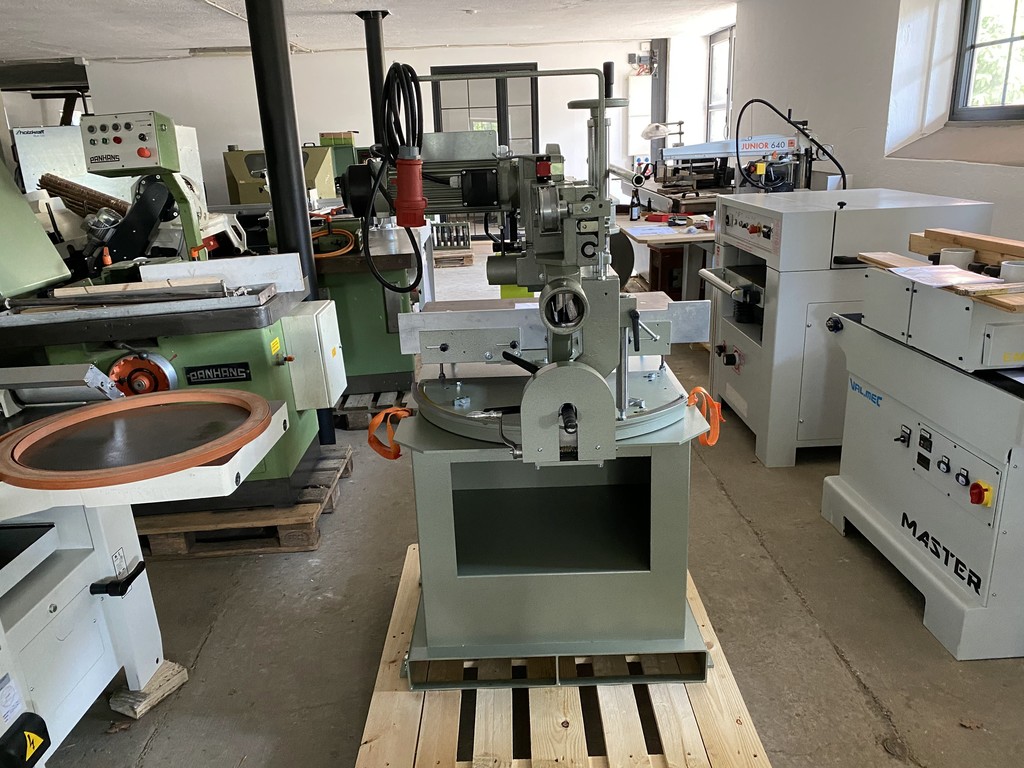

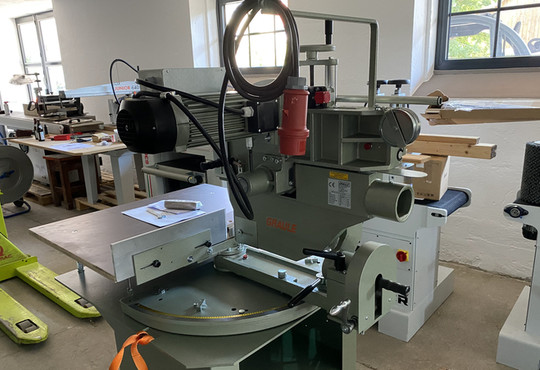

crosscut and miter saw
Typ ZS 200 N
compact and clear saw to cut large-format cross section
this machine is characterized by following properties:
– clarity by cutting process because saw blade arranged above
– extremely large cutting area with a compact and stable structure
– powerful 5 kw three-phase motor with automatic star delta start

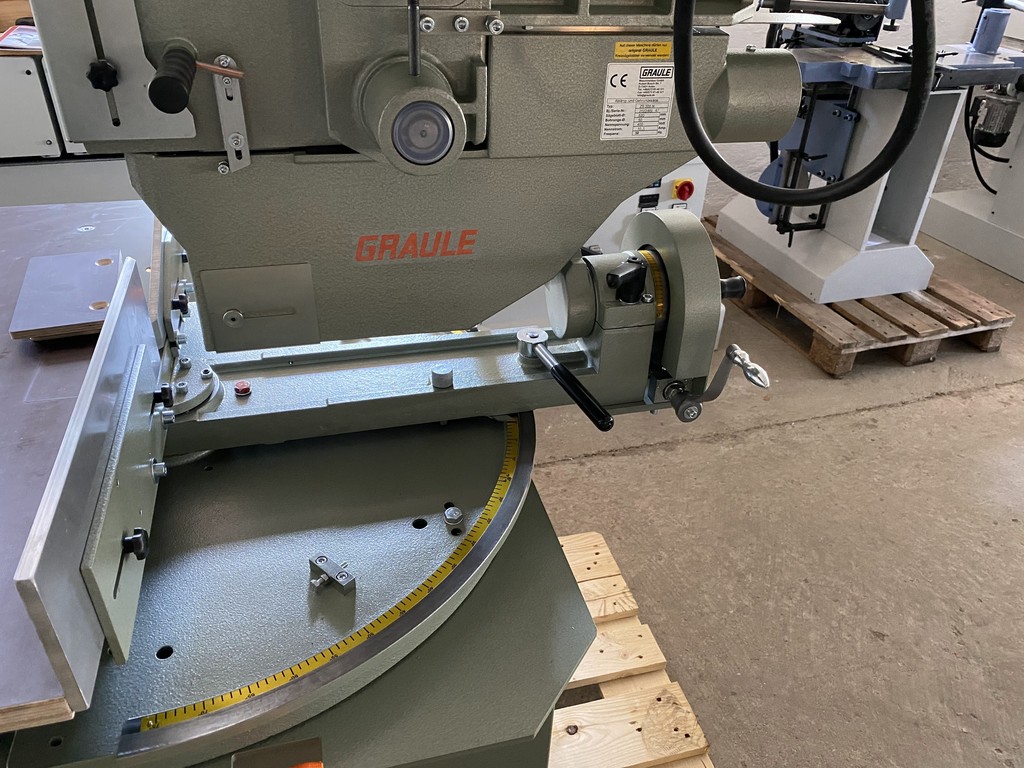

– fast miter adjustment
- horizontal meter range of 45° – 90° – 25°
- vertical meter range of ca. 60° – 90° – 30°
- acute angle below 45° adjustable
– double miter cut
– adjustable fixed stops at 90° und 45°
– intermediate miter adjustable according to the scale
– machine can be connected to suction over the lower saw blade guard
– machine can be moved with a pallet truck
– the machine is also available on a chassis with an integrated roller conveyor
