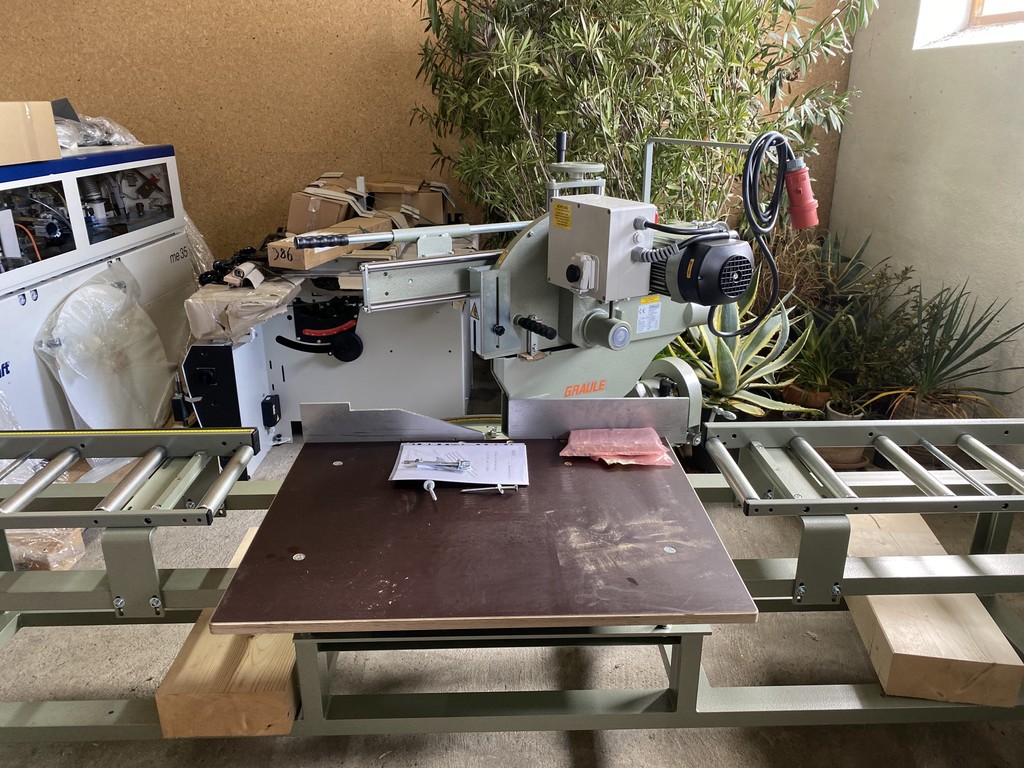

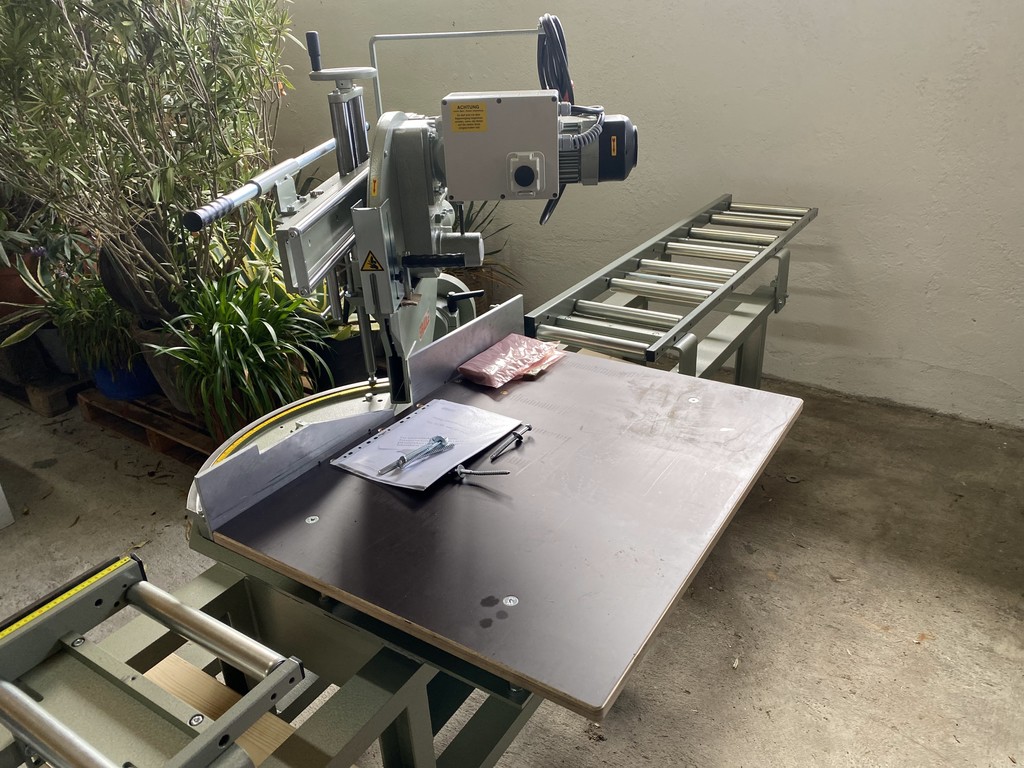

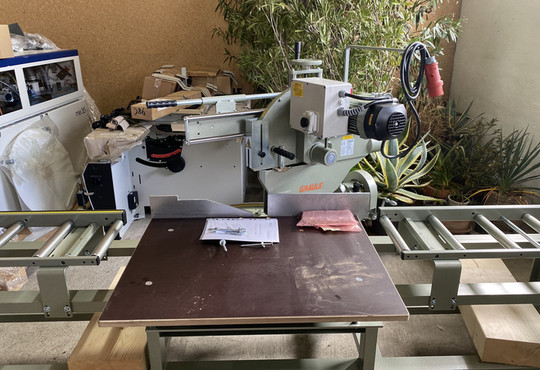

cross-cut and mitre saw
Graule
cross cut saws
Type:
ZS 200N-F
Technische Daten:
- Depth of cut at 90°: 200 mm
- Depth of cut at 45°: 140 mm
- Cutting width at 90°: 420 mm
- Cutting width at 45°: 295 mm
- Miter range horizontal: 45° -90° -25°
- Miter range vertically: 60° -90° -30°
- Sawblade diameter: 520 mm
- rpm: 2800 U/min

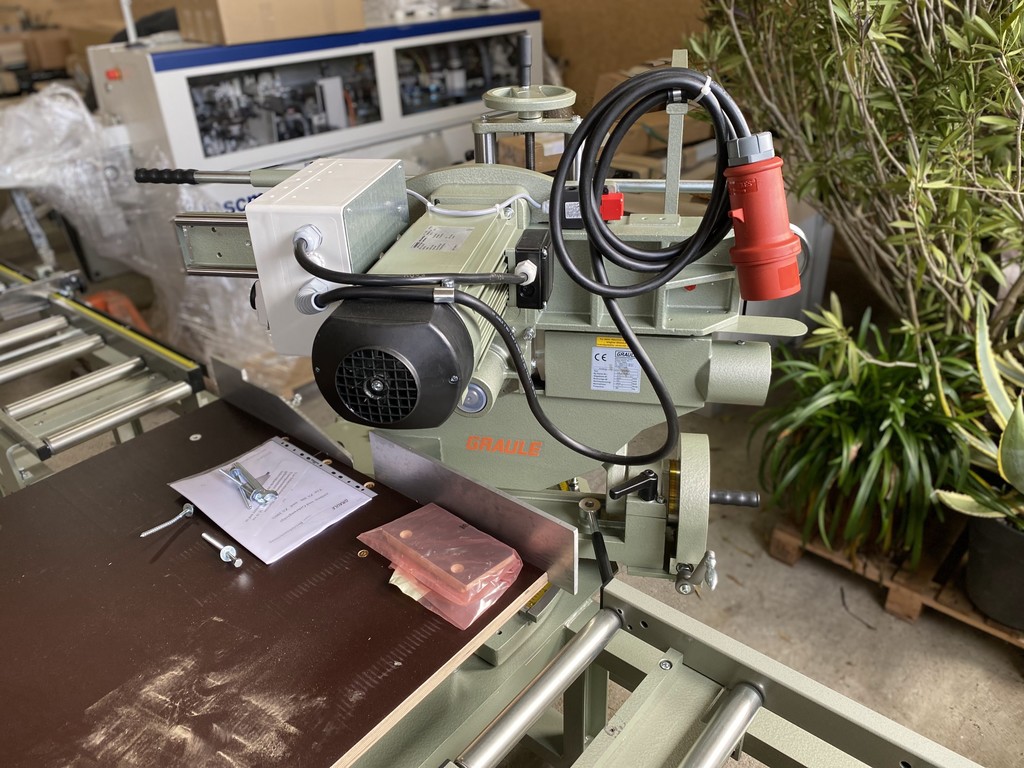

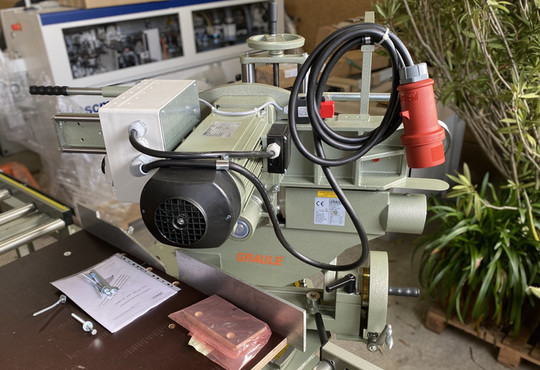

- Motor: 5 kW
- motor brake: yes
- suction plant diameter: 100 mm
- weight: 490 kg
- Model year: 2024
- Location: at our showroom
Price:
15440,- € (net)
suitable for: wood, PVC, alu

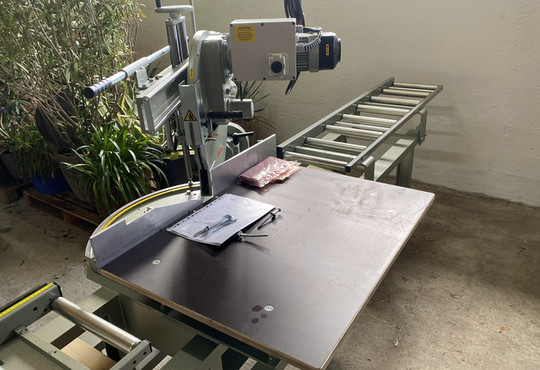

cross-cut and mitre saw with maximum cutting height of 200mm
stable grey cast iron construction
precise ball bearing guide of the tool slide on hardened and ground steel shafts

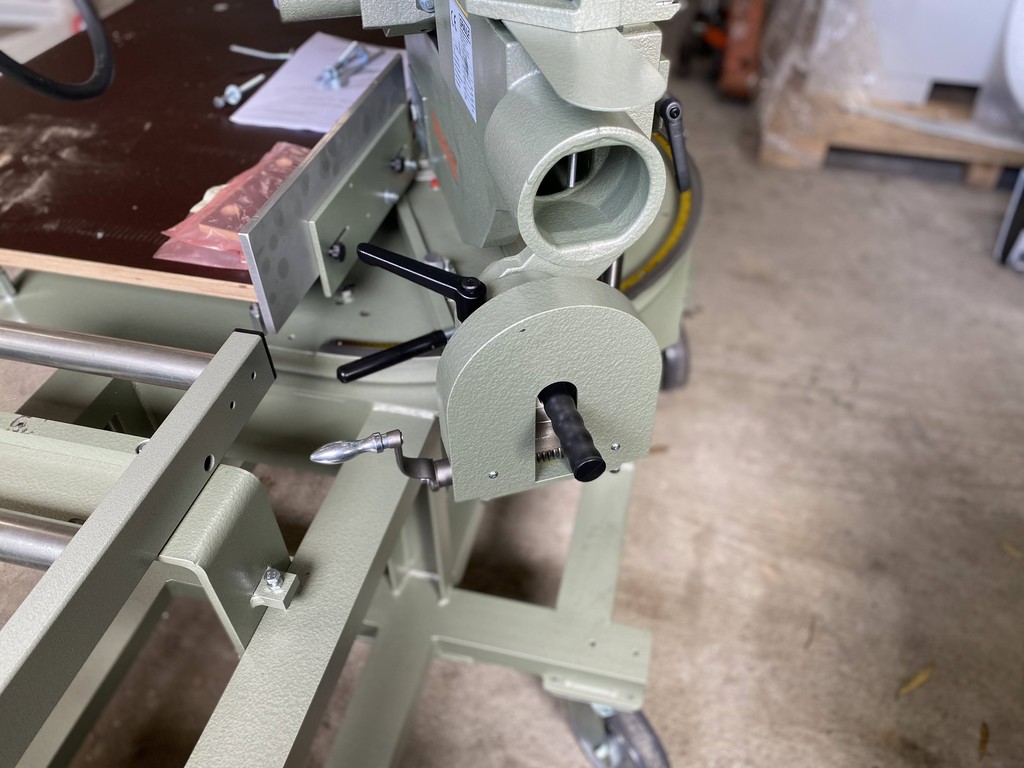

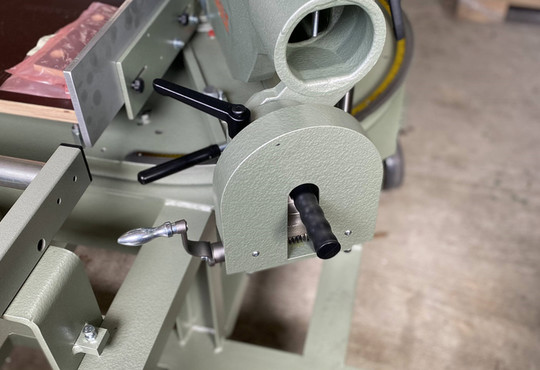

manual saw feed

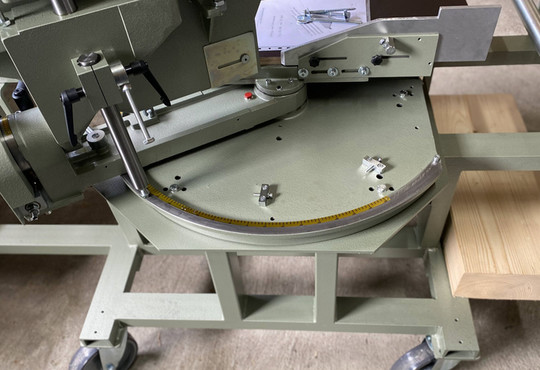

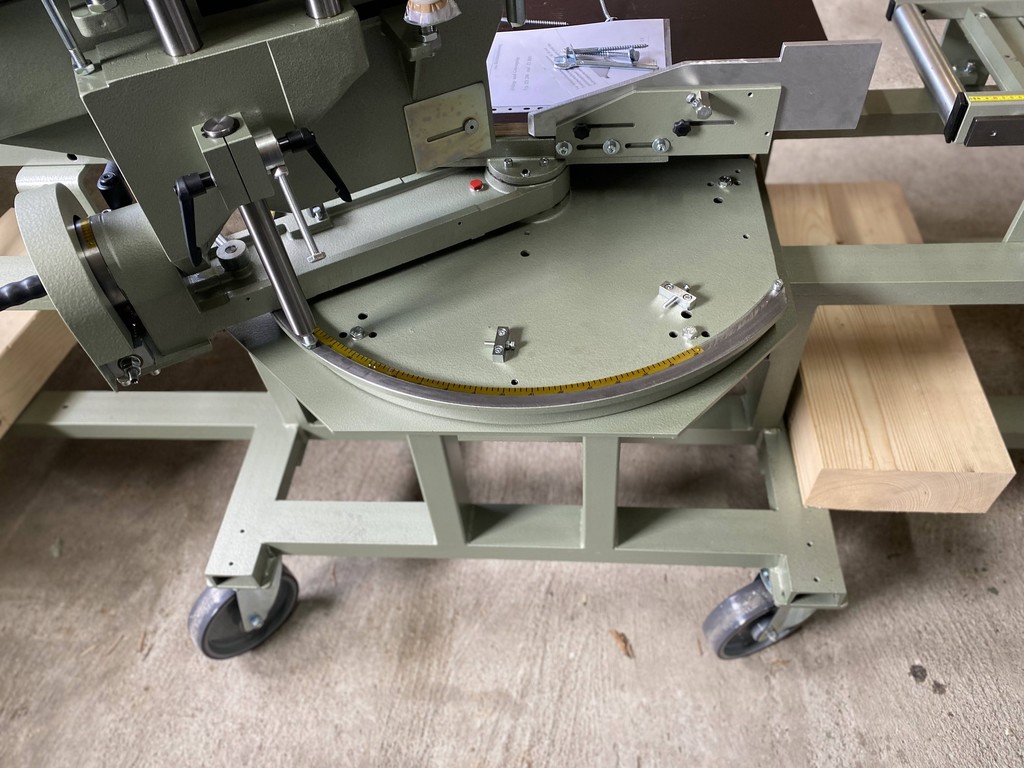

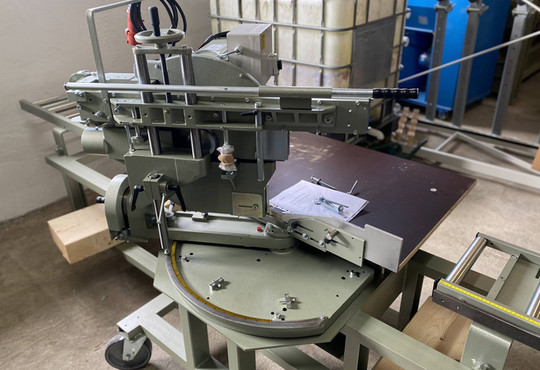

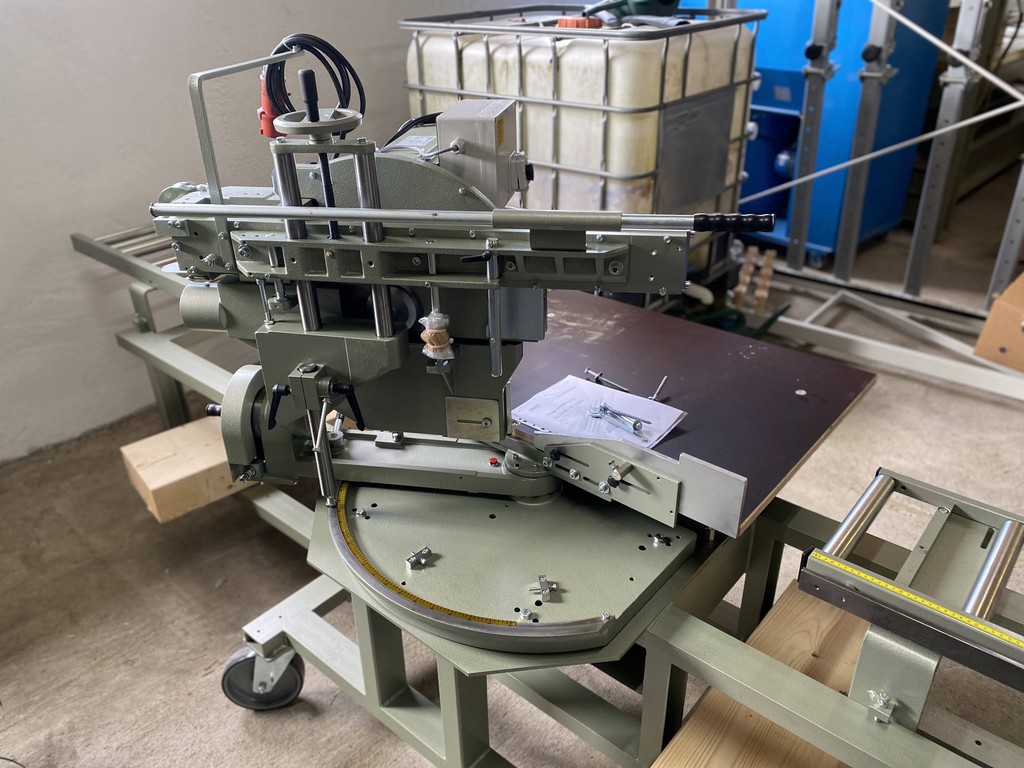

fast mitre adjustment up to 25° horizontal and 30° vertical
readjustable fixed stops at 90° and 45°
lower saw blade protection can be connected to extraction system

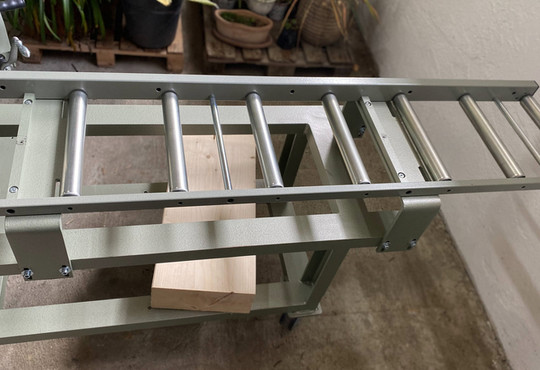

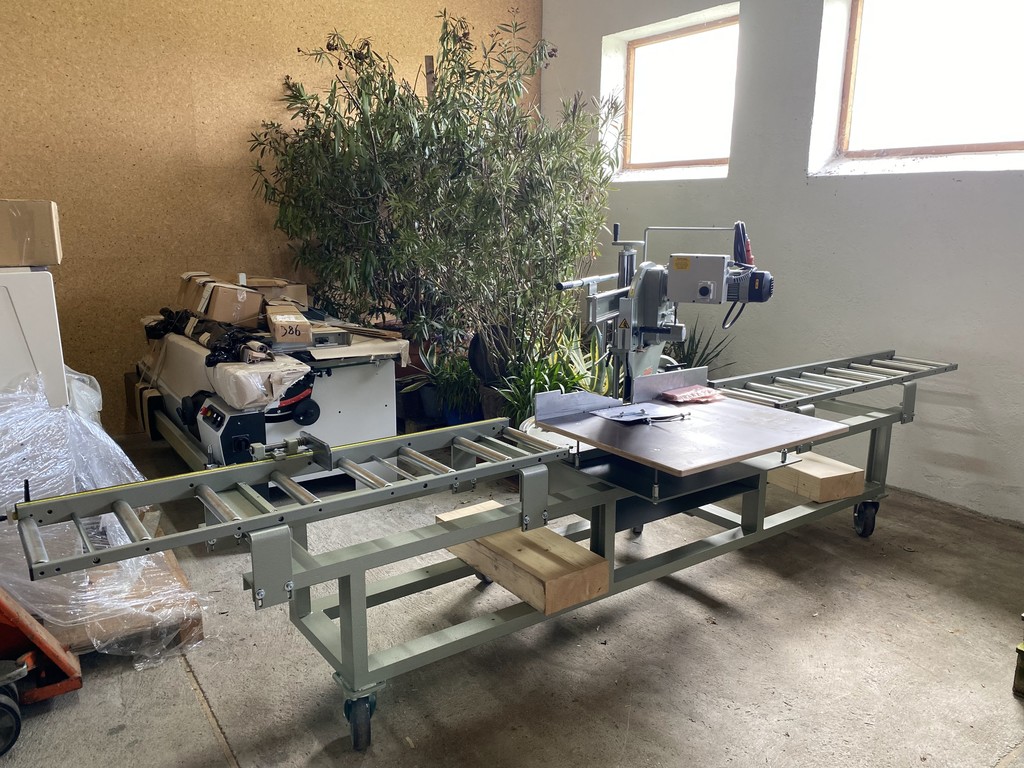

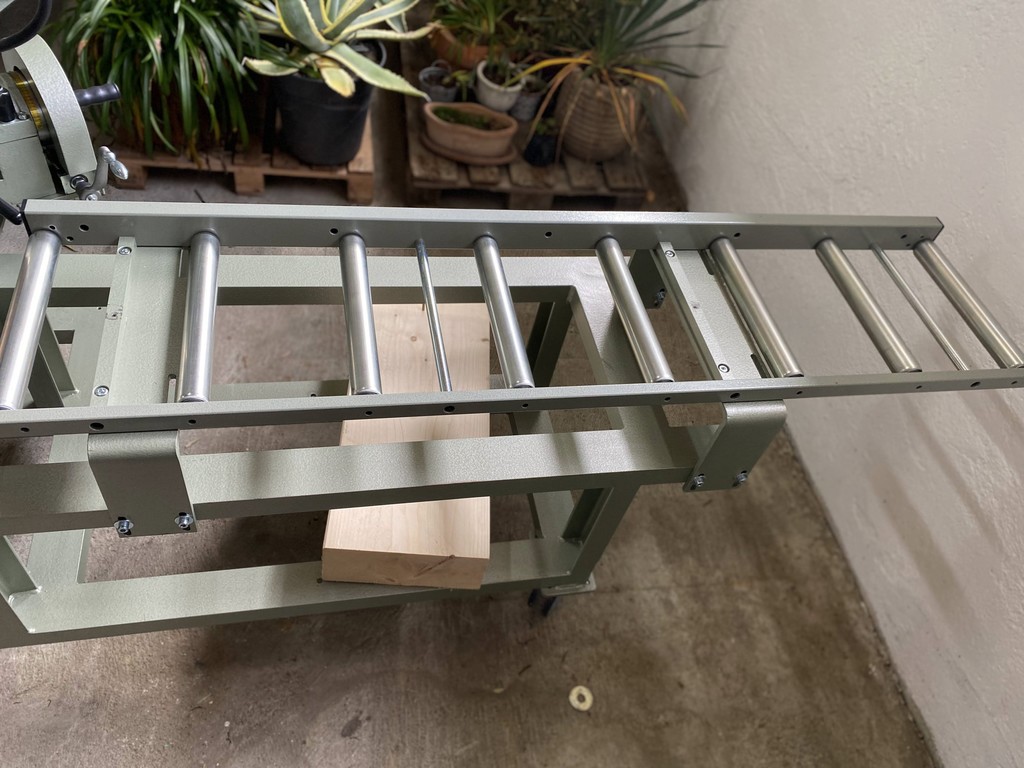

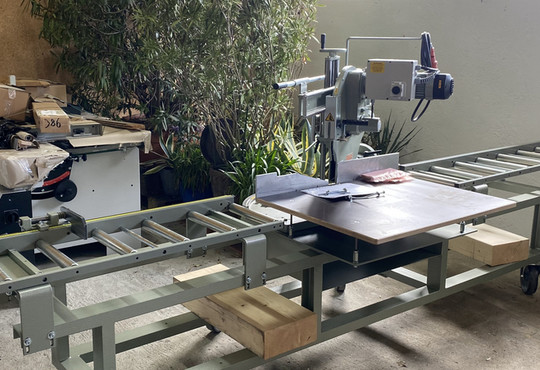

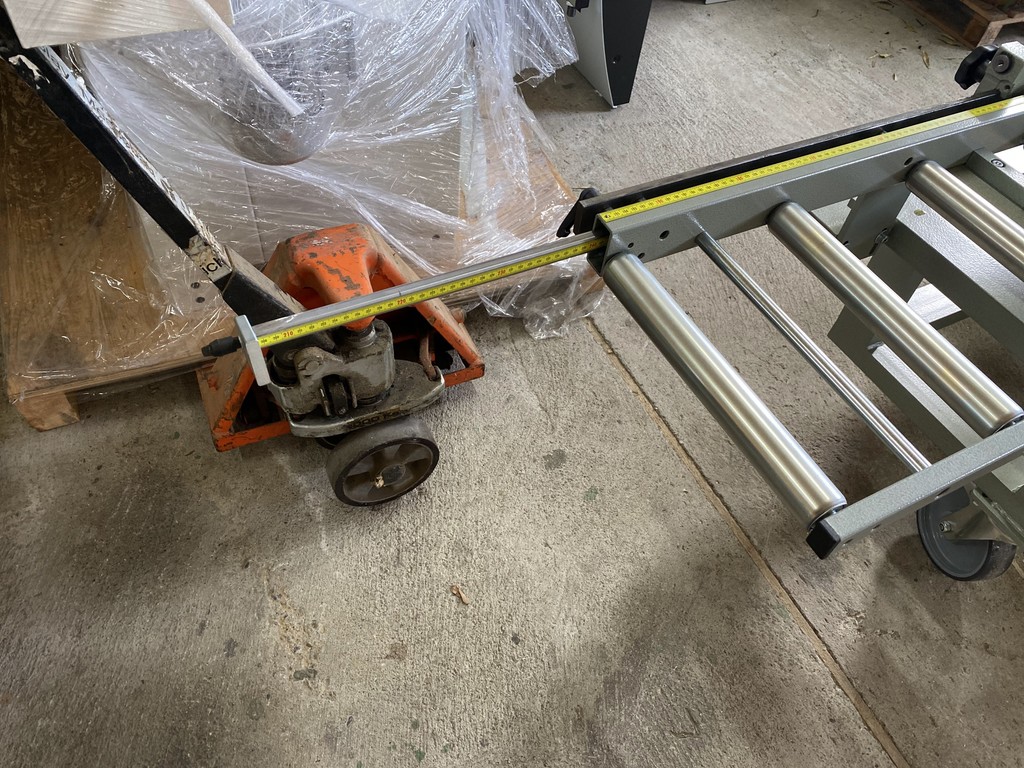

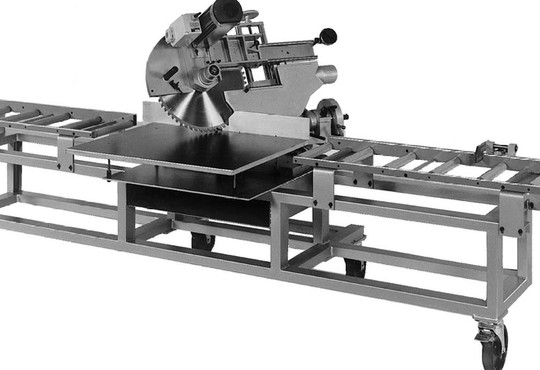

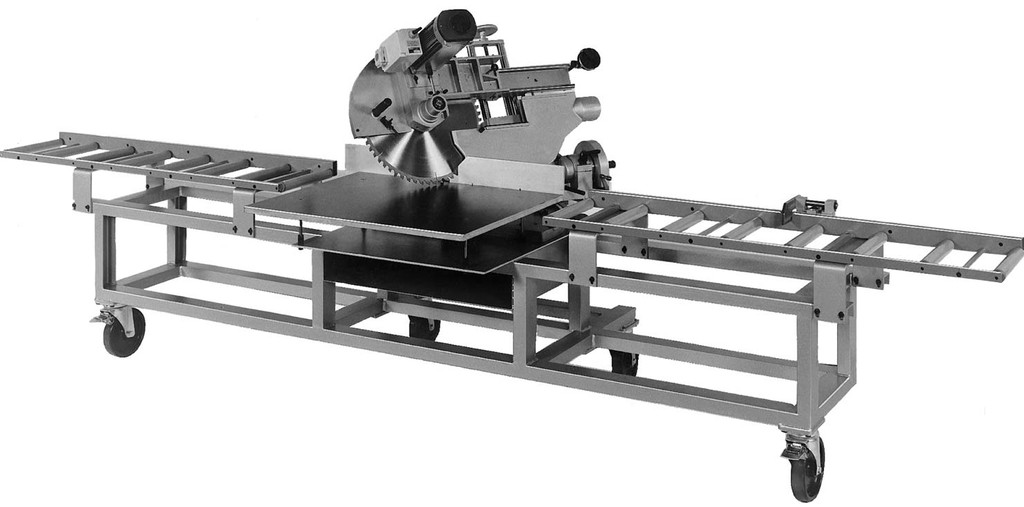

machine mounted on mobile machine base with 1.5 m long roller conveyors left and right

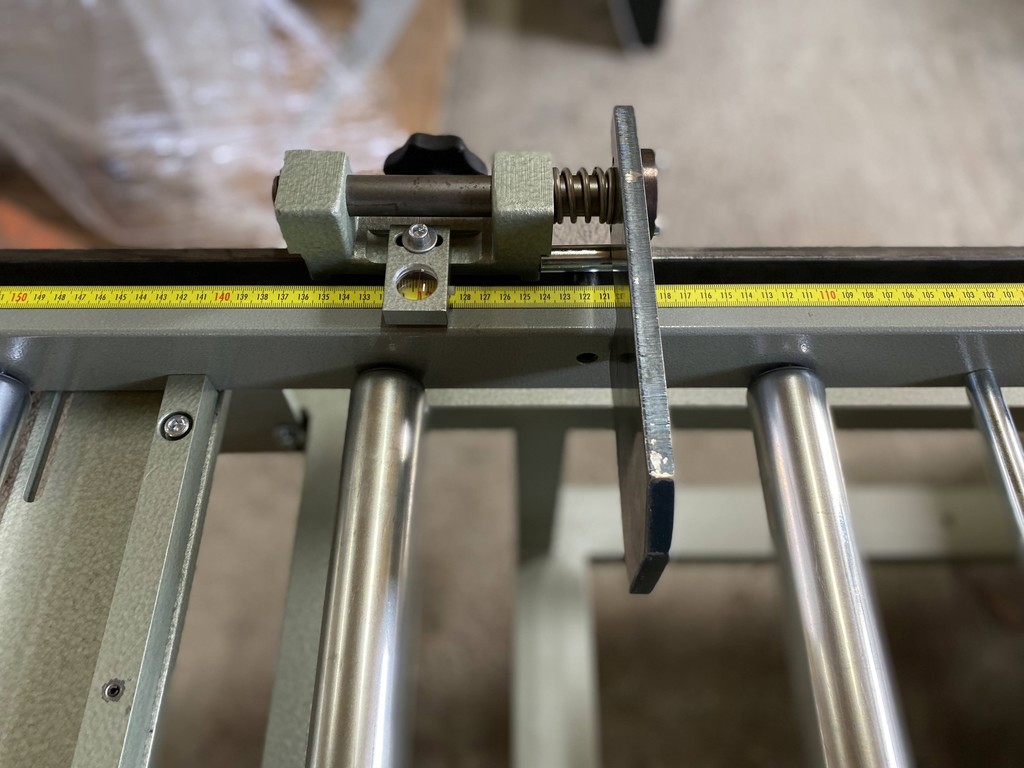

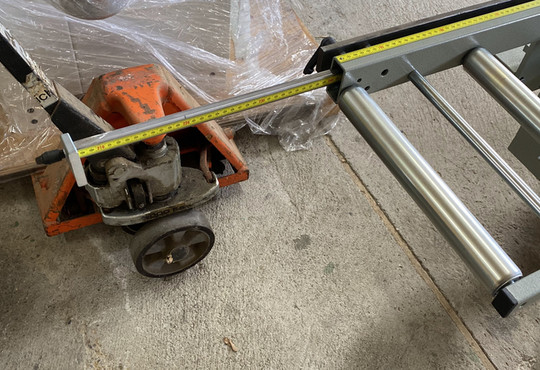

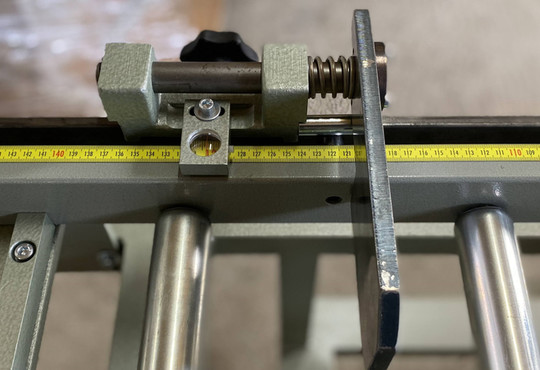

left side with scale and stop slide
